Current location: Home » Product Center » Hinge » Mitred Hinge H3310



Mitred Hinge








Product Description:

A、Material:Zinc alloy、ZnAI4、 cold-rolled steel Q235
B、Finish:plated(brass + nickel + sealing)

C、No screws in normal



Features:

High accuracy, the door keeps steady well, and the gap between the door and cabinet is smaller



Product advantages:

Fashion design, application for solid wood furniture, well steady, smaller gap between the door and cabinet



Product parameters:

A、Thickness of the door: 14mm-22mm

B、Adjustable range: up and down -2mm/+2mm, left and right -2mm/+2mm

C、Opening angel: 135°

D、Two holes distance: 52mm

E、Depth for drilling: 13mm



Others (Packing and services):

Package: 25pcs/inner box, 100pcs/box,N.W/G.W: 14.9kgs/16.15kgs
MEAS: 30.5cm * 24cm * 25cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )


gas spring strut   tandem box   concealed drawer slide   soft close lid stay   flap stay   hydraulic mechanism   cabinet support   cabinet door damper
* Indicated required fieldInquire: Mitred Hinge H3310
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.

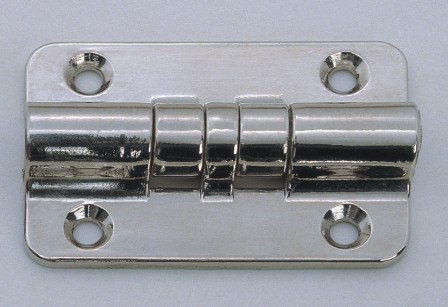

7444
7444
A、 Material Steel Q235
B、 Finish plated, brass plated for cord, nickle plated for surface
C、 Size 44.4*60MM

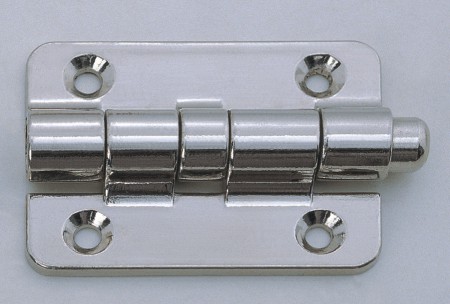

7445
7445
A、 Material Steel Q235
B、 Finish plated, brass plated for cord, nickle plated for surface
C、 Size 40*60MM

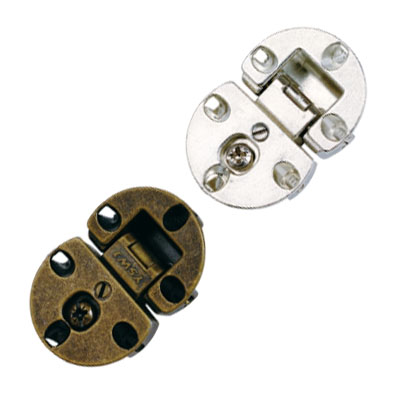

Flap Hinge  H3309
Flap Hinge H3309
A、Down-opening to 90°
B、Concealing assembly for a space-saving
C、For a space-saving, easy to install, a well-made product

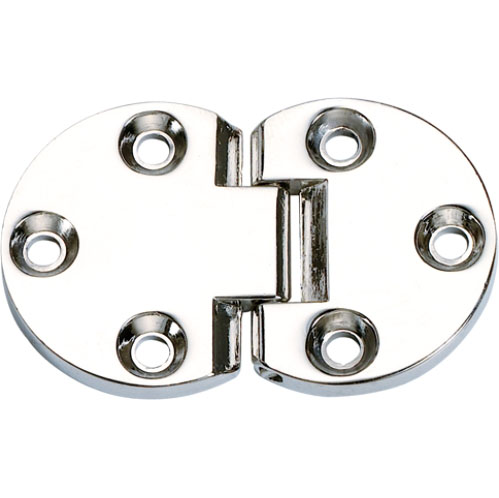

Flap Hinge  H3307
Flap Hinge H3307
A、Down-opening to 90°is achieved..
B、Concealing assembly for a space-saving.
C、Application for down-opening door, different colour meet your requirements
D、16mm cranking,
