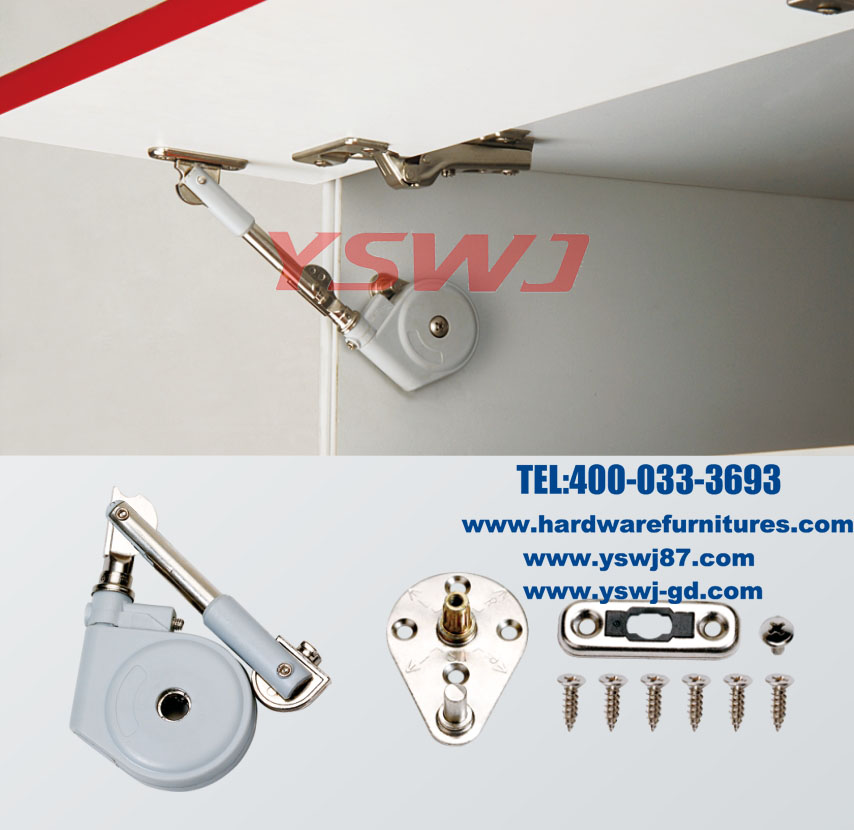

Soft lid stay YS319-SU

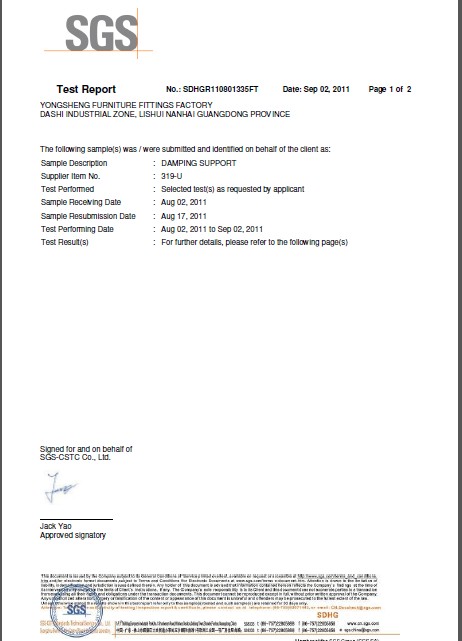

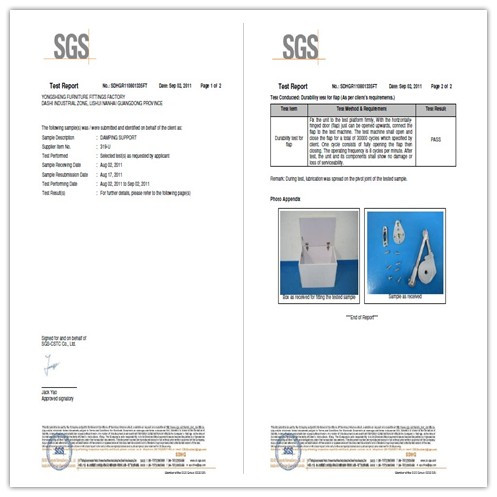

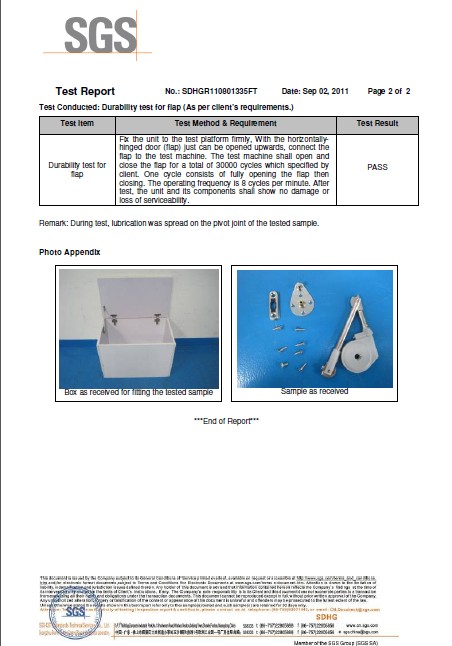

SGS Certificate
.jpg)

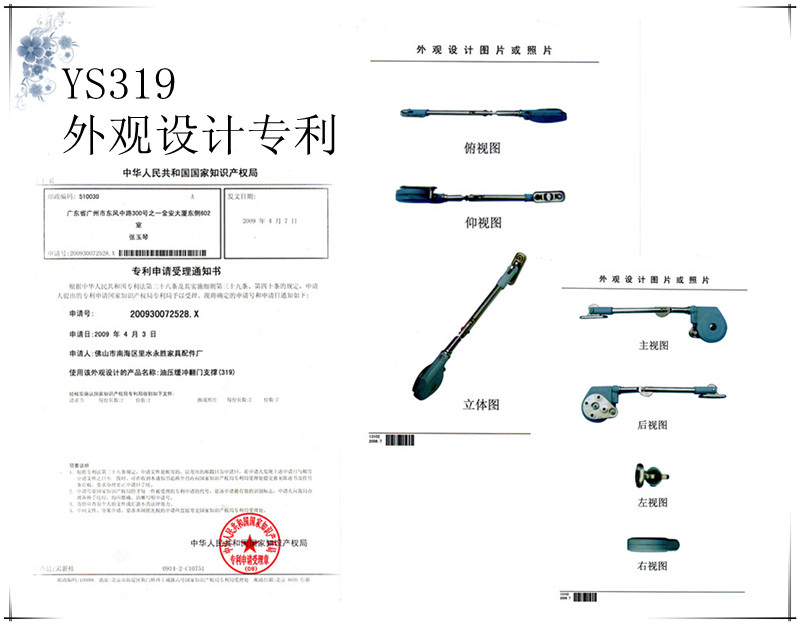

Own Appearance Design Patent Certificate
.jpg)
Product Description：
A、Material：plastic POM、Zinc alloy、ZnAI4、 cold-rolled steel Q235、 resistance oil、spring steel 65Mn、brassH62
B、Finish：plated（brass + nickel + sealing） , heat treatment , ultrasonic welding
Features：
A、Soft down closing, no need to use soft close damper.
B、Using with soft closing hinge to get a better function.
C、Application: for the light and small door ( cabinet height: 150mm-300mm, load capacity:1.5-2.5kg)
.jpg)
Product advantages:
A、Left or right using is achieved
B、low temperature resistance oil
C、Pass SGS test 30,000times
D、Clip-on assembly, easy to instal
Others (Packing and services)：
Package: 25pcs/inner box，100pcs/box,N.W/G.W: 15.2kgs/15.7kgs
MEAS: 37cm * 21cm * 17.5cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
.jpg)
.jpg)
.jpg)
| * First Name: | Please fill in your First Name |
| * Last Name: | Please fill in your Last Name |
| Company name: | Please fill in your company name |
| Telephone number: | |
| * E-mail: | |
| Country: | |
| Address: | |
| * Inquire intention description: | |
| Please fill in the quantity and description of Inquire products for uniform stocking. | |
- Soft lid stay YS315-SU
- A、Soft down with suction, no need to use damper. B、Only using for left or right, a single one usage is achieved C、Adjustable closing speed D、Soft down closing without slam E、Application: over 180mm-250mm height F、Cycles: 50,000times
- Soft down lid stay YS316-SD
- A、Soft down opening to 90° without slam B、Only using for left or right, a single one usage is achieved C、Adjustable closing speed D、Application: 180mm-250mm height E、Cycles: 50,000times
- Soft lid stay YS315-U
- A、Soft closing, no need to use soft close damper. B、Only using for left or right, a single one usage is achieved C、Adjustable closing speed D、Soft down closing without slam E、Cycles: 50,000times
- Soft up close lid stay YS319-U
- A、Left or right using is achieved B、low temperature resistance oil C、Pass SGS test 30,000times D、Clip-on assembly, easy to instal E、Soft closing with suction, no need to use damper. F、Using with soft closing hinge to get a better function.. G、Own Appearance Design Patent Certificate
