Current location: Home » Product
Center » Pull out systems » 2-fold One-touch Concealed Runner System with bolting

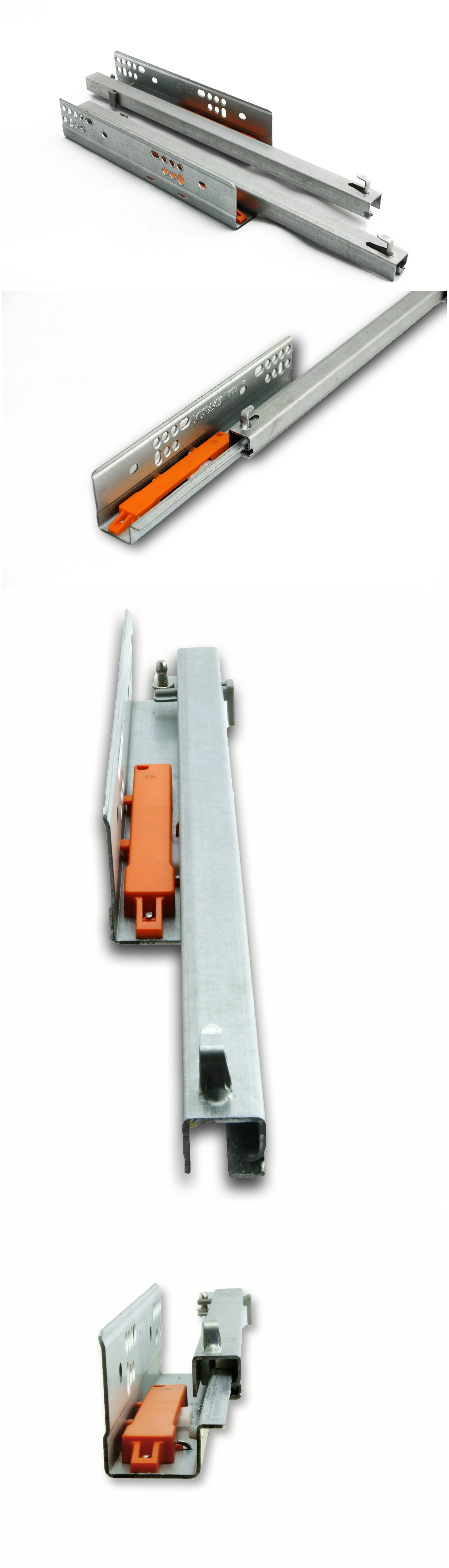

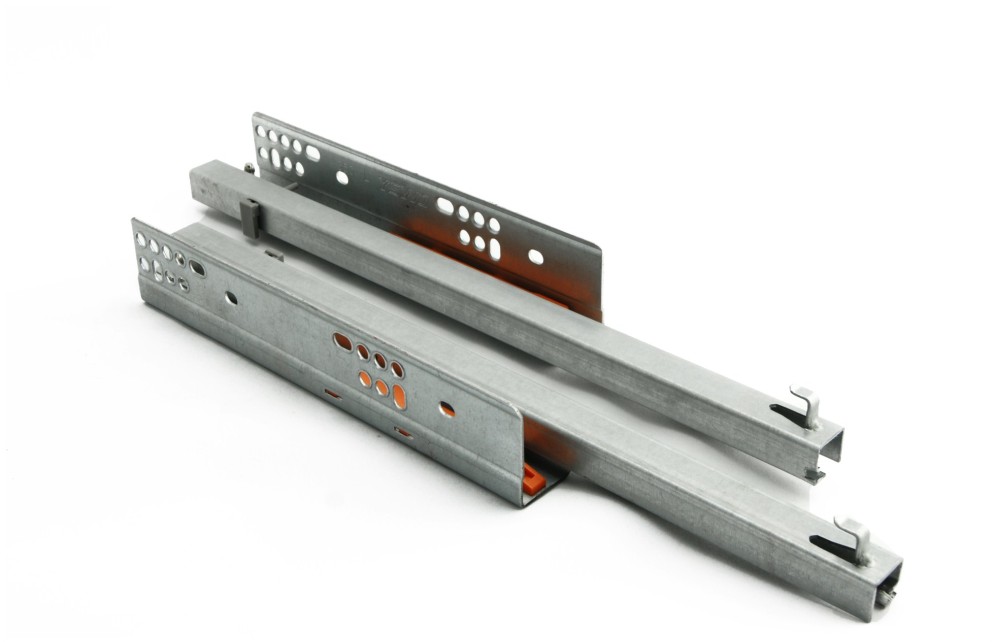

2-fold One-touch Concealed Runner System with bolting
Product category: Pull out systems
Hotline: 400-0333-693
Model: 730A
Fax: +86-757-82629360
Email:yswj@yswj-gd.com
Capacity: 25kgs
Length: 270-550mm
Soft Closing: YES
Single-track extension
Fast to assemble & disassemble without tools
Thanks to the silent system to keep the slides moving smoothly
Product Description
- Capacity: 25kgs
- Finish: Zinc Plated
- Length: 270-550mm
Product Advantages
- Single-track extension
- Fast to assemble & disassemble without tools
- Thanks to the silent system to keep the slides moving smoothly
- 0 ~ +3mm adjustment for the height of drawer can be achieved
Product Parameters

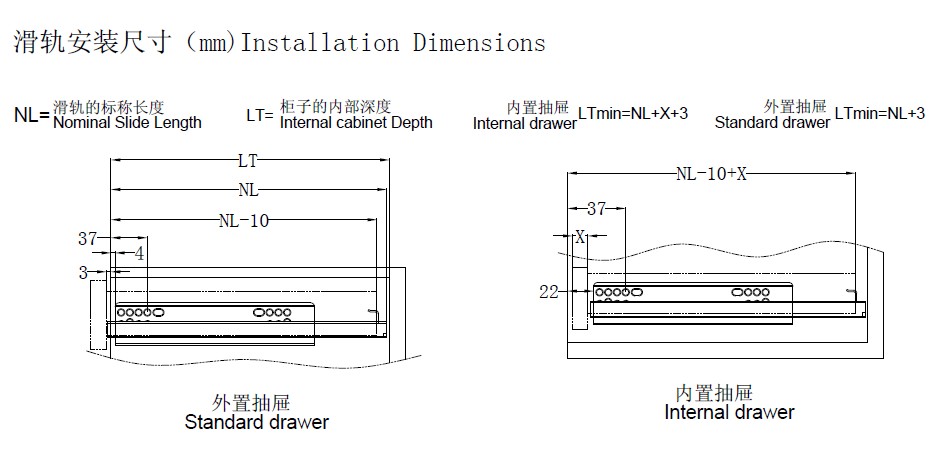

Mounting Dimension

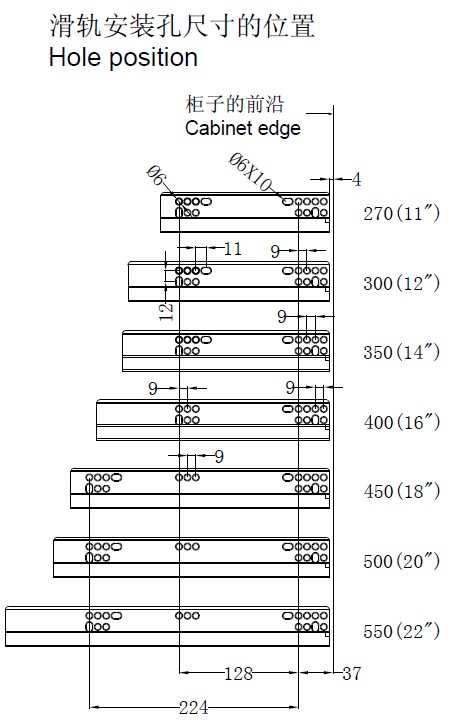

The Position of mounting hole
Gas Strut Tandem Box Cabinet Support flap Stay Soft Lid Stay Concealed Runner System
