Hong Kong Yongsheng furniture cabinet bathroom accessories Co., Ltd.

30 YEARS FOCUSED
The most professional furniture cabinet bathroom accessories manufacturer
Yongsheng Furniture Fittings Co.,Ltd

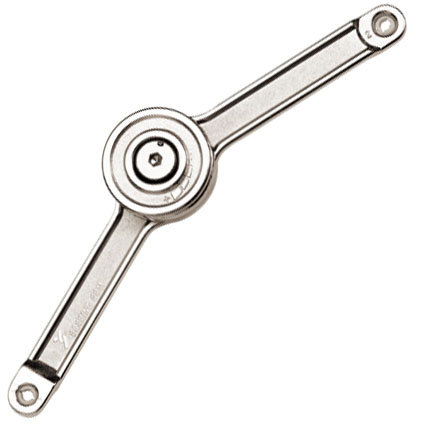

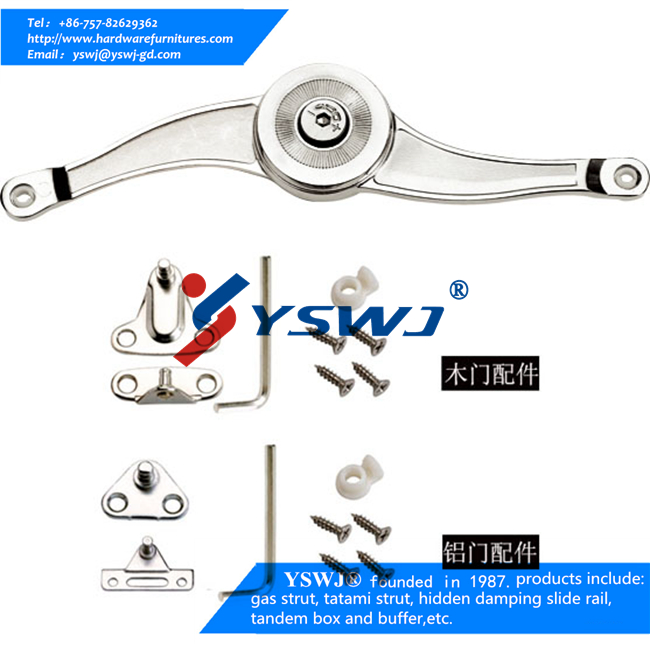

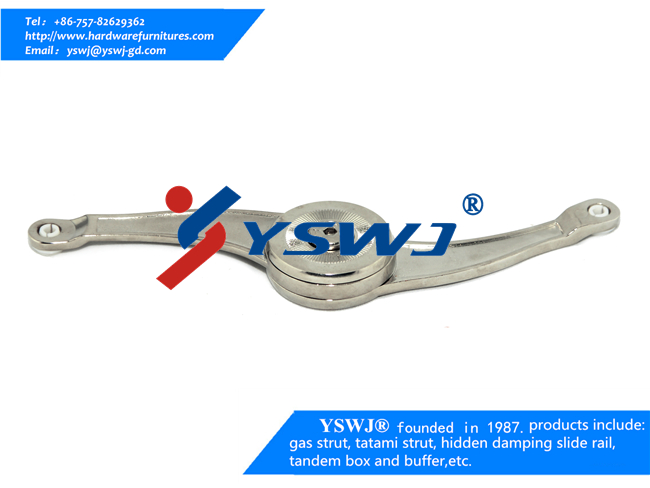

Flap stay YS310

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS310
Fax:
A、Using the steel ball and cam construction inside ,. Up opening to 35°,free stop at any position you want.
B、Having a good stability, opening for a labor-saving, closing without noise,. Adjustable moving speed for doors is achieved.
C、YS310 passed 50,000 cycles durability test which is far beyond the CNS requirements of hinge- 40,000 times.

Product Description:

A、Material:plastic POM、Zinc alloy、 cold-rolled steel Q235、 PA66、steel ball 65Mn

B、Finish:plated(brass + nickel + sealing), polish, heat treatment



Features:

A、Upward opening to 35°, free stop at any position you want.

B、Adjustment according to the door weight is achieved to get a better function.



Product Advantages:

A、Using the steel ball and cam construction inside ,. Up opening to 35°,free stop at any position you want.

B、Having a good stability, opening for a labor-saving, closing without noise,. Adjustable moving speed for doors is achieved.

C、YS310 passed 50,000 cycles durability test which is far beyond the CNS requirements of hinge- 40,000 times.

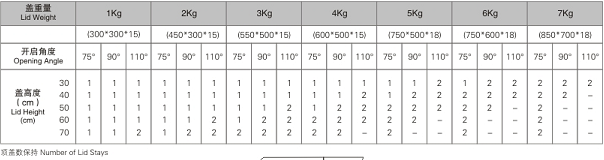

Product Parameter:

Pls refer to the illustration below



Others(Packing and Services):

Package: 25pcs/inner box,100pcs/box,

N.W/G.W: 25kgs/25.65kgs

MEAS: 32cm * 27.5cm * 23cm,

Delivery Date: Normally in one month

MOQ:  3000pcs

Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )

Ps:

Difference between YS309, YS310 and YS311  flay stay:

(1) different design

(2) Internal structure:

YS309 flap stay---friction clutch inside

YS310 flap stay---steel ball and cam construction inside

YS311 flap stay---wheel gear inside

YS312 flap stay---wheel gear inside

Cabinet support
* Indicated required fieldInquire: Flap stay YS310
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.

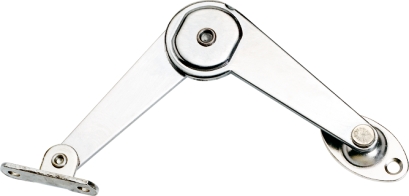

Flap stay  YS323
Flap stay YS323
A、Easy to assemble
B、Nimble to down opening
C、Application for small down-opening door.

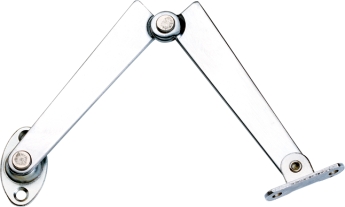

Flap stay  YS313
Flap stay YS313
A、Easy to assmeble
B、Nimble to up opening
C、Application for small up-opening door

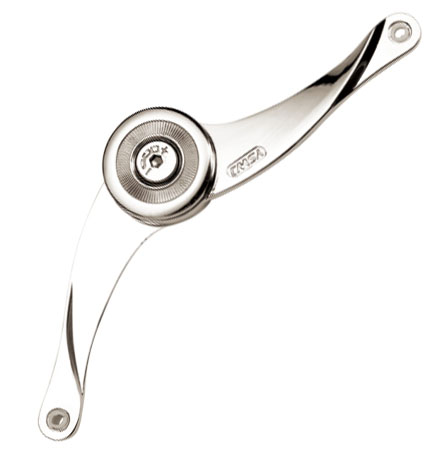

Flap stay  YS311
Flap stay YS311
A、Appearance Patent No.: (ZL 2003 3010 1764.2)
B、Using wheel gear inside to avoid skiding , free stop at any position you want.
C、Having a good stability, opening for a labor-saving, closing without noise.
D、YS311 passed 50,000 cycles durability test which is far beyond the CNS requirements of hinge- 40,000 times.
Flap stay  YS312
Flap stay YS312
A、Using wheel gear inside to avoid skiding , free stop at any position you want.
B、Having a good stability, opening for a labor-saving, closing without noise.
C、YS312 passed 50,000 cycles durability test which is far beyond the CNS requirements of hinge- 40,000 times.
D、Own Utility Model Patent Certificate
