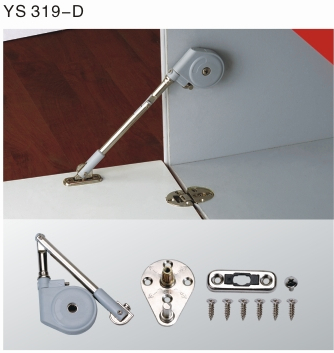

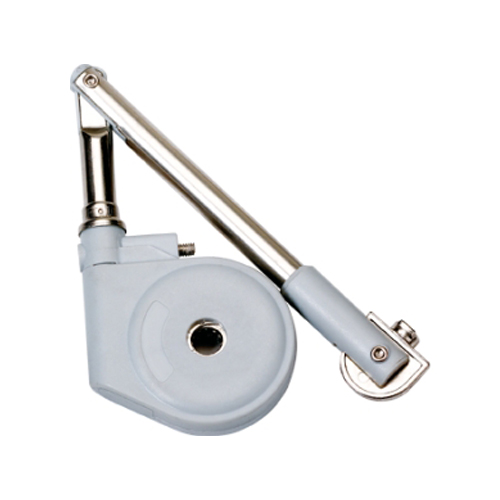

Soft down lid stay YS319-D
.jpg)
Product Description：
A、Material：plastic POM、Zinc alloy、ZnAI4、 cold-rolled steel Q235、 resistance oil、spring steel 65Mn、brassH62
B、Finish：plated（brass + nickel + sealing） , heat treatment , ultrasonic welding
Features：
A、Soft down with suction when closing, no need to use soft close damper.
B、Soft down opening to 90°without slam
C、Using with H3307 can get a better effect.
D、Application: over 250mm height
Product Advantages:
A、Left or right using is achieved
B、low temperature resistance oil
C、Pass SGS test 30,000times
D、Clip-on assembly, easy to instal
Product Parameters：
paired using when the door height is over 600mm
Others(Packing and services)：
Package: 10pcs/inner box，100pcs/box,N.W/G.W: 17.3kgs/18.2kgs
MEAS: 45cm * 29.5cm * 19.5cm,
Delivery Date: Normally in one month
MOQ: 3000pcs Samples Preparation: samples can be sent in 3 working days (DHL 3-5days，UPS3-5days，Fedex/TNT 3-5days，EMS 7days reach destination )
