Installing Instruction for Tatami Gas Spring Strut

Categories: FAQStars: 3StarsVisit: -Release time: 2016-05-25 09:59:00
RSS subscription Font size:【 Large Middle SmallSource: Editor: Author:



Let us introduce how to install Tatami gas spring strut and attention tips here.



Installation procudure:



Step1

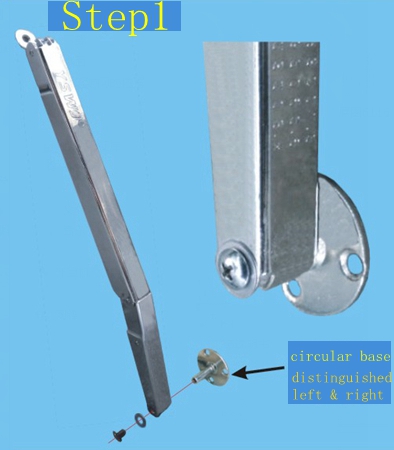

Get the part, circular base out, and then placed left& right.  As the figure shows below:






Step2

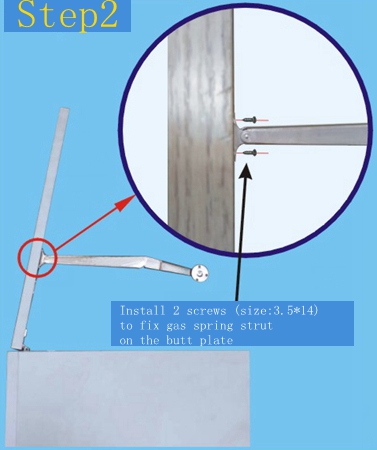

Position Tatami gas spring strut in Tatami butt plate and install 2 screws(size:3.5*14);

As the figure shows below:










Step3

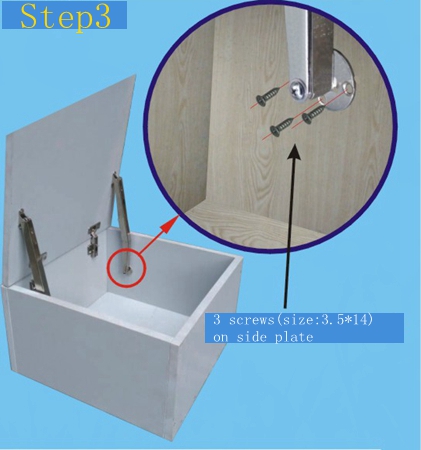

Position the other side of Tatami gas spring strut in side plate, and install 3 screws(size:3.5*14);

As the figure shows below:

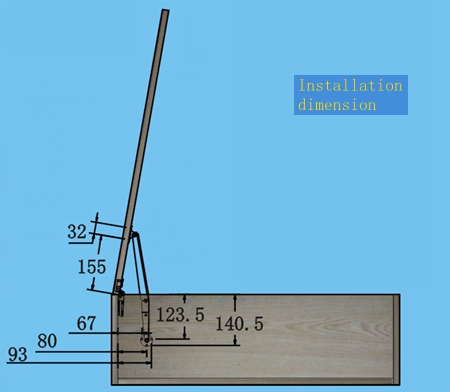

Installation dimension;

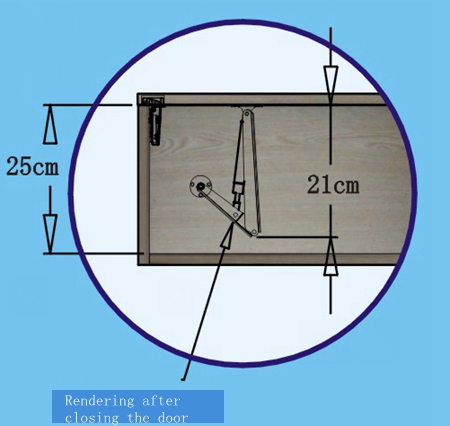

Depth of internal cabinet should be more than 23cm

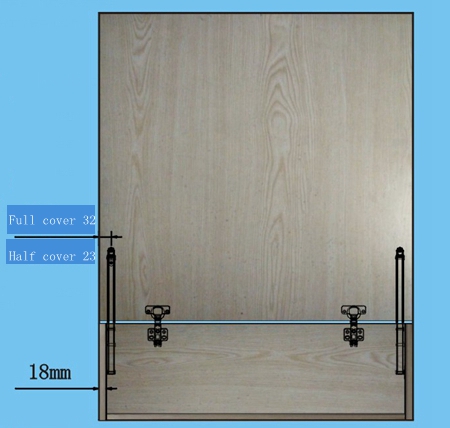

Full cover 32, half cover 23, and beyond 18mm or less than 18mm side board, please according to actual need to add or subtract.






As the figure shows below, 18mm thickness door, beyond 18mm please according to actual need to match, or can conatct our sales representives directly.






Remark&Configuration Table

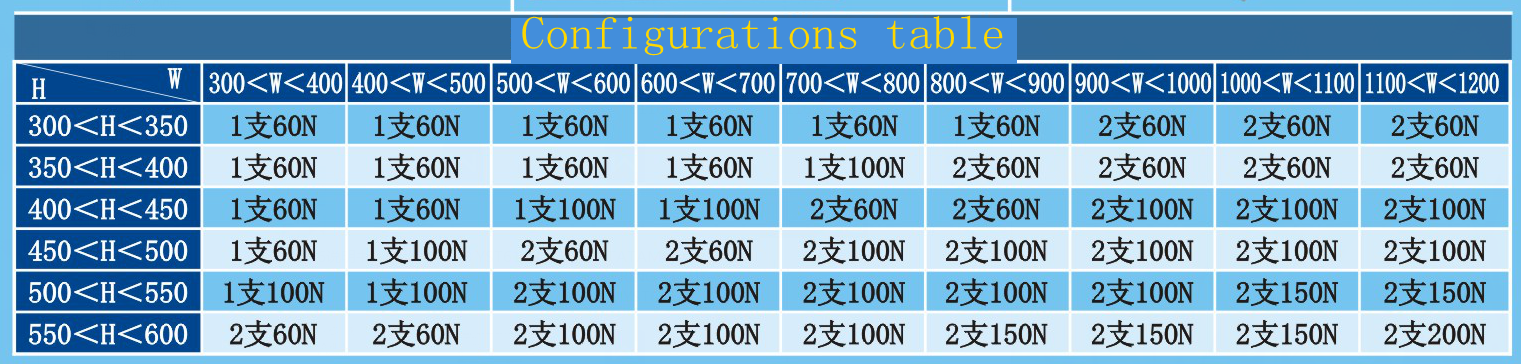

Because the different factories have fifferent sizes for customized Tatami bed, please select your gas spring struts in the following configuration table according to actual need. And you can contact our sales for details and get the suitable force traceability of gas spring strut(60、100、150&120N).



The product is a high pressure product . Please note that disassembly only by professional because of the danger.
