Current location: Home » Product Center » Hinge » Hinge T3899-2A

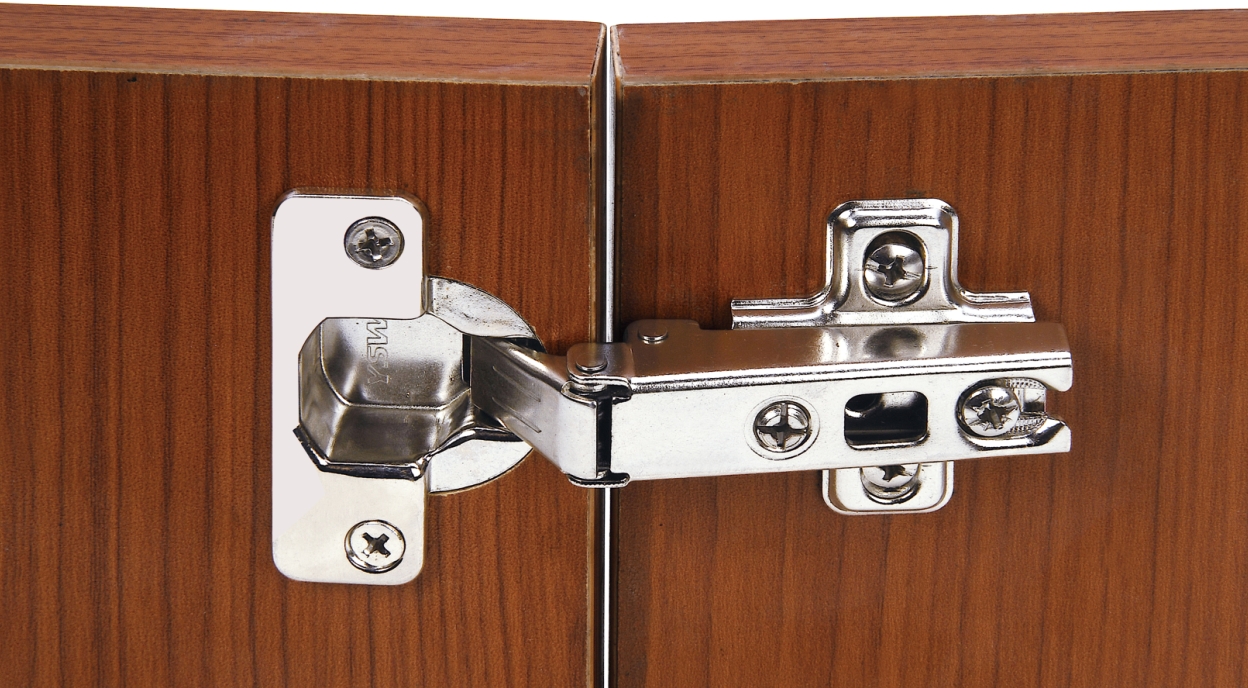

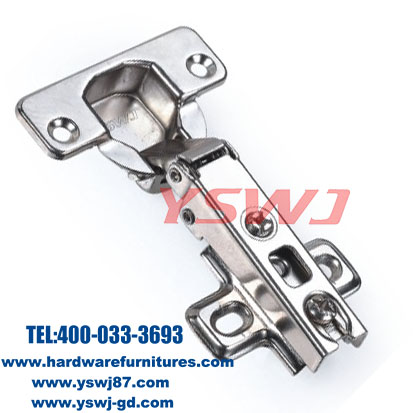

Hinge T3899-2A

Product category: Hinge
Hotline: 86-757-82629362
Model: T3899-2A
Fax:
A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing
C、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
D、cycles: over 50,000times



furniture hinge




cabinet hinge




hinge

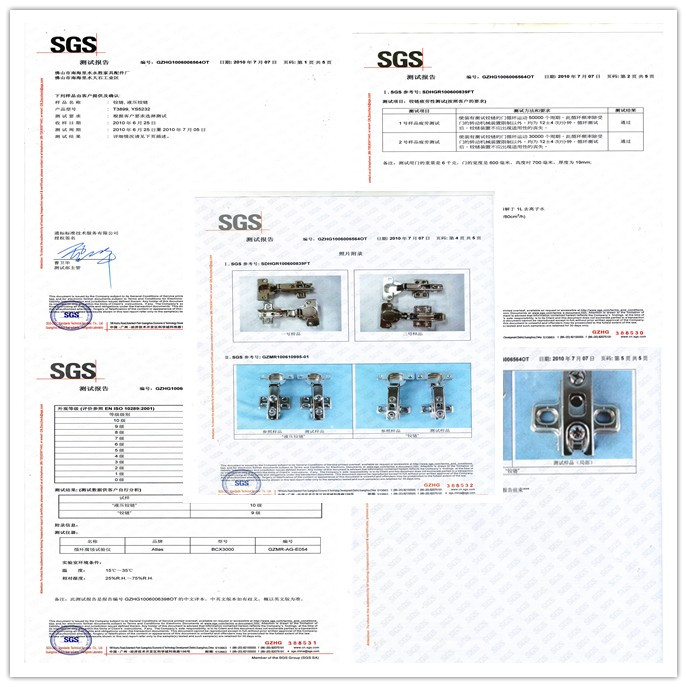

SGS Certificate



kitchen hinge




Product Description:

A、Material: steel(cold rolled steel Q235, SK7 )

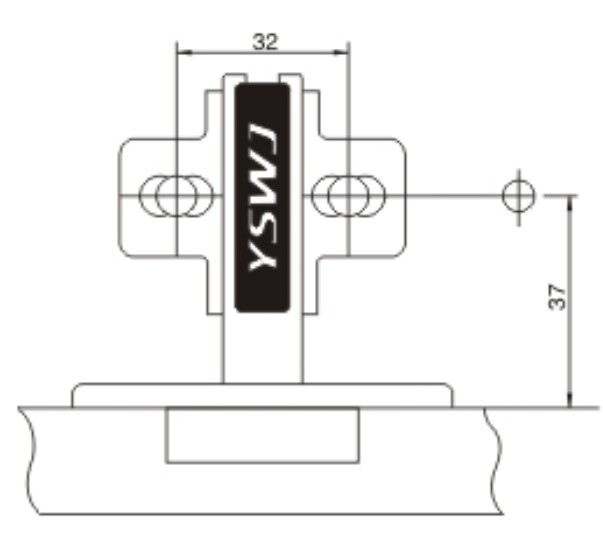

B、Mounting plates: two holes, four holes and heightening mounting plate can be available.
C、Finish:plated(brass + nickel + sealing)



Features:

A、Easy to assemble, 3-D adjustment is achieved.
B、Two way, less slam when closing



Product advantages:

24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements




Product Parameters:

cycles: over 50,000times

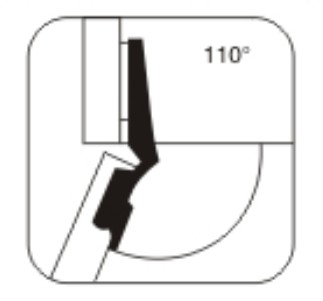

opening angle: 110°


door hinge


depth of cup: 11.5mm

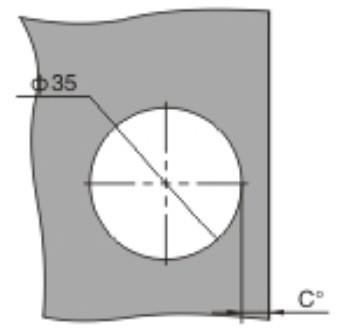

diameter of cup: 35mm,c.c. 48mm

 flap hinge




Others (Packing and services):

Package: 200pcs/box,N.W/G.W: 15.35kgs/15.6kgs
MEAS: 39cm * 30cm * 17cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )





gas spring strut   tandem box   concealed drawer slide   soft close lid stay   flap stay   hydraulic mechanism   cabinet support   cabinet door damper
* Indicated required fieldInquire: Hinge T3899-2A
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.
Hinge  L3899-2B
Hinge L3899-2B
A、3-D adjustment is achieved.
B、Soft closing without slam
C、Application: only for aluminium frame and glass door
D、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
Hinge  L3899-2A
Hinge L3899-2A
A、3-D adjustment is achieved.
B、Soft closing without slam
C、Application: only for aluminium frame and glass door
D、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
Hinge  L3990-2C
Hinge L3990-2C
A、Only using for aluminium-framed door
B、Easy to assemble and disassemble
C、Application: only for aluminium frame and glass door
D、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
Hinge L3899-2C
Hinge L3899-2C
A、3-D adjustment is achieved.
B、Soft closing without slam
C、Application: only for aluminium frame and glass door
D、24h/48h/72h corrosion resistance to pass SGS salt spray test can be achieved according to your requirements
