Hong Kong Yongsheng furniture cabinet bathroom accessories Co., Ltd.

30 YEARS FOCUSED
The most professional furniture cabinet bathroom accessories manufacturer
Yongsheng Furniture Fittings Co.,Ltd

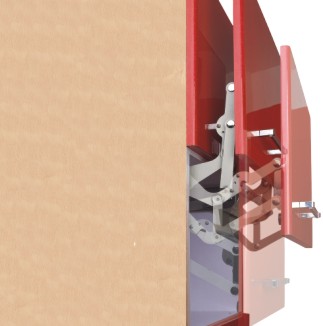

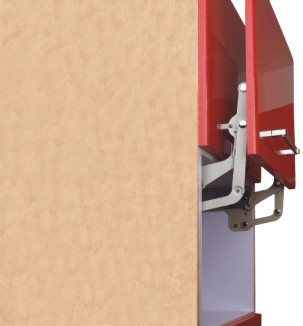

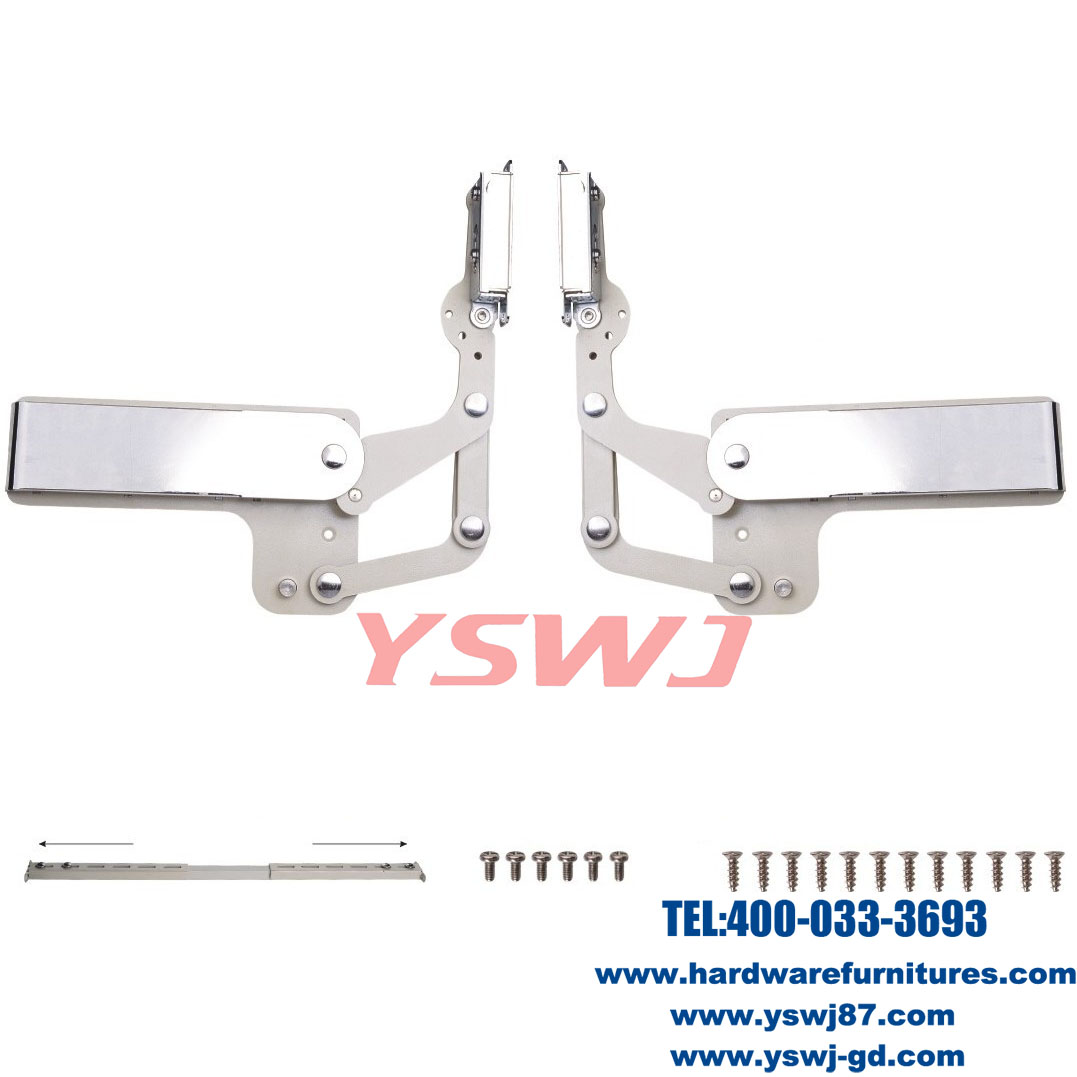

Kitchen door lifting mechanism YS337-A

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS337-A
Fax:
A: Easy to operate and save the space, opening and closing silently.
B: A wide range of options for users.
C: Application for a variety of different specifications , material and weight upward D: Easy to install, 3-D adjustment is achieved for the door .
E: Suitable for heavy-duty door,different options according to the door weight .
F、Own Apperance Design Patent Certificate and Utility Model Patent Certificate.



cabinet door lift








   lift flap system














Own Apperance Design Patent and Utility Model Patent







soft close lift








Product Description:



A: Material: air spring, cold-rolled steel Q235 etc

B: Finish: powder-coated, platedbrass + nickel + sealing







Features:



A: Easy to operate and save the space, opening and closing silently.

B: A wide range of options for users.

C: Application for a variety of different specifications , material and weight upward    opening door, easy to install.

D: Easy to install, 3-D adjustment is achieved for the door.

E: Suitable for heavy-duty door, different options according to the door weight.

F: Comparing with YS337-B kitchen door lift mechanism, with different polish and connecting bar.







Advantages:



AThe door lift up by itself slowly after pulling for 10cm.

BClosing silently without any noise and shock.

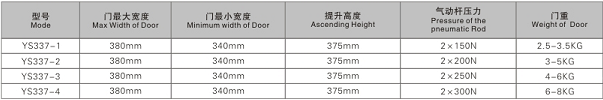

Product Parameter:



A: Application: For microwave oven used kitchen cabinet and office file cabinet

B: Installation: pls refer to the chart below.

C: the length of connecting bar: 535mm, whose size is adjustable.

D: Cycles: 50,000times

E: Maximum front projection: 173mm











Others (packing and service)



A: Package: 1 set/inner box, 6 inner boxes/carton

B: N.W. : 17.6/19kgs

C: MEAS: 75*44*12.2cm

D: Delivery Date: Normally in one month.

E: MOQ: 120sets

F: Payment term: T/T



Cabinet support
* Indicated required fieldInquire: Kitchen door lifting mechanism YS337-A
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.
Kitchen door lifting mechanism  YS337-B
Kitchen door lifting mechanism YS337-B
A: Easy to operate and save the space, opening and closing silently.
B: A wide range of options for users.
C:Application for a variety of different specifications , material and weight upward opening door, easy to install.
D: Easy to install, 3-D adjustment is achieved for the door.
E: Suitable for light-duty door.
Kitchen door down-opening mechanism  YS337-D
Kitchen door down-opening mechanism YS337-D
A: Smoothly open and close the door
B: The door itself lift down slowly after pulling for 10cm.
C: Closing silently without any noise and shock by gas spring.
D: Installed in the bottom plate of the kitchen cabinet, occupy little space and will not prevent installation of shelf.
Pneumatic lateral opening mechanism YS340
Pneumatic lateral opening mechanism YS340
A、the door open to the left and right by itself after opening for 15cm
B、save the space
C、easy to move, soft closing without slam and noise
