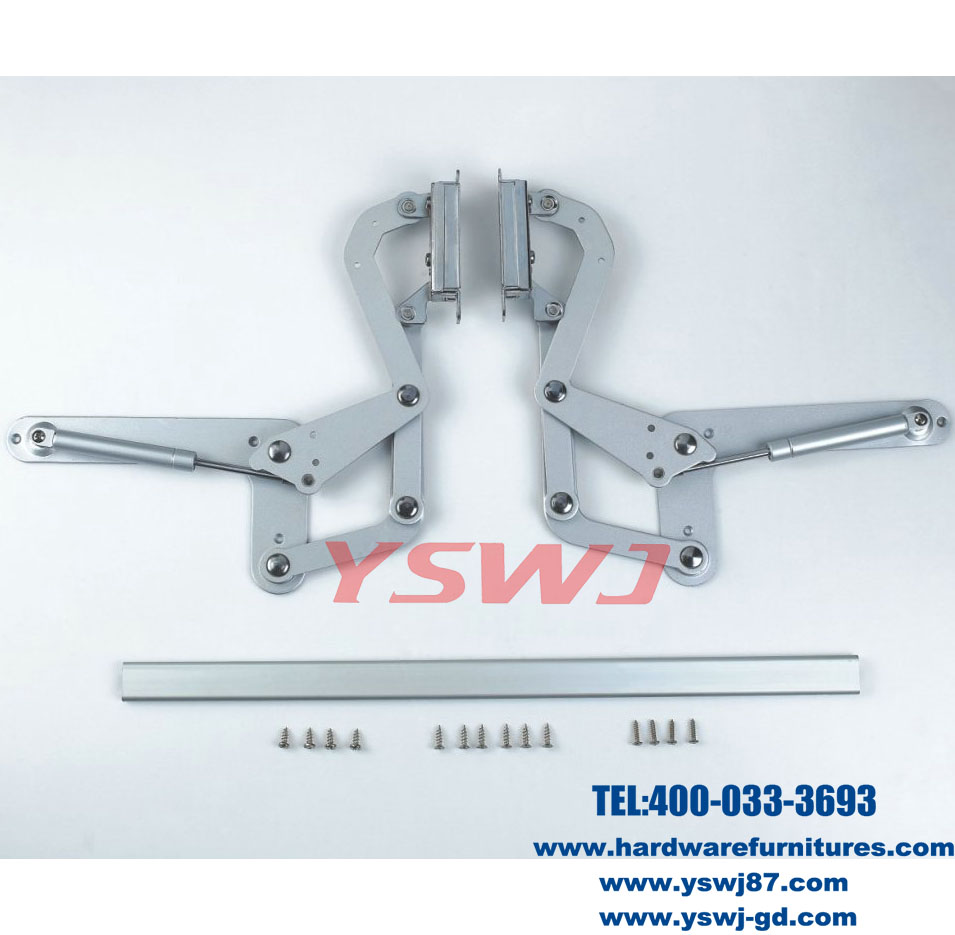

Kitchen door lifting mechanism YS337-B

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS337-B
Fax:
A: Easy to operate and save the space, opening and closing silently.
B: A wide range of options for users.
C:Application for a variety of different specifications , material and weight upward opening door, easy to install.
D: Easy to install, 3-D adjustment is achieved for the door.
E: Suitable for light-duty door.





kitchen door lift

cabinet lift system










Own Apperance Design Patent and Utility Model Patent







cabinet lift system








Product Description:



A: Material: air spring, cold-rolled steel Q235 etc

B: Finish: powder-coated, platedbrass + nickel + sealing











Feature:



A: Easy to operate and save the space, opening and closing silently.

B: wide range of options for users.

C: Application for a variety of different specifications , material and weight upward opening door, easy to install.

D: Easy to install, 3-D adjustment is achieved for the door.

E: Suitable for light-duty door.

F: Compare with YS337-A kitchen door lofting mechanism, with different polish and connecting bar.









Product Advantage:

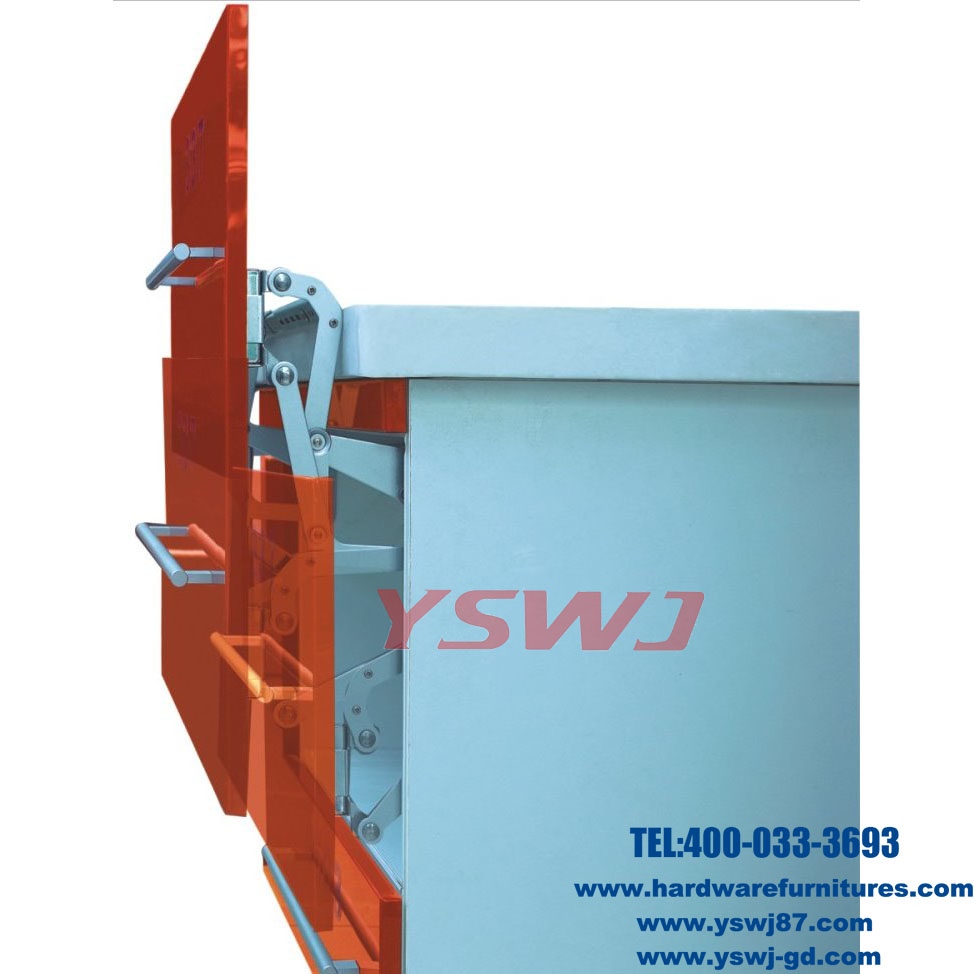

AThe door itself lift up slowly after pulling for 10cm,

BClosing silently without any noise and shock.

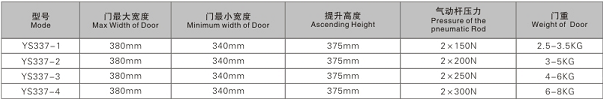

Product Parameter:



A: Application: For microwave oven used kitchen cabinet and office file cabinet

B: Installation: Pls refer to the chart below.







C: Door Height : 600mm - 900mm can be achieved

  • 600mm height of cabinet: using with 541mm connecting rod.
  • 900mm height of cabinet: using with 826mm connecting rod.
  • maximum front projection: 193mm



D: Cycles: 50,000times













Others (packing and service)



A: Package: 1 set/inner box, 6 inner boxes/carton

B: N.W. : 11.5/13kgs

C: MEAS: 80.5*45*13cm

D: Delivery Date: Normally in one month.

E: MOQ: 500sets

F: Payment term: T/T
