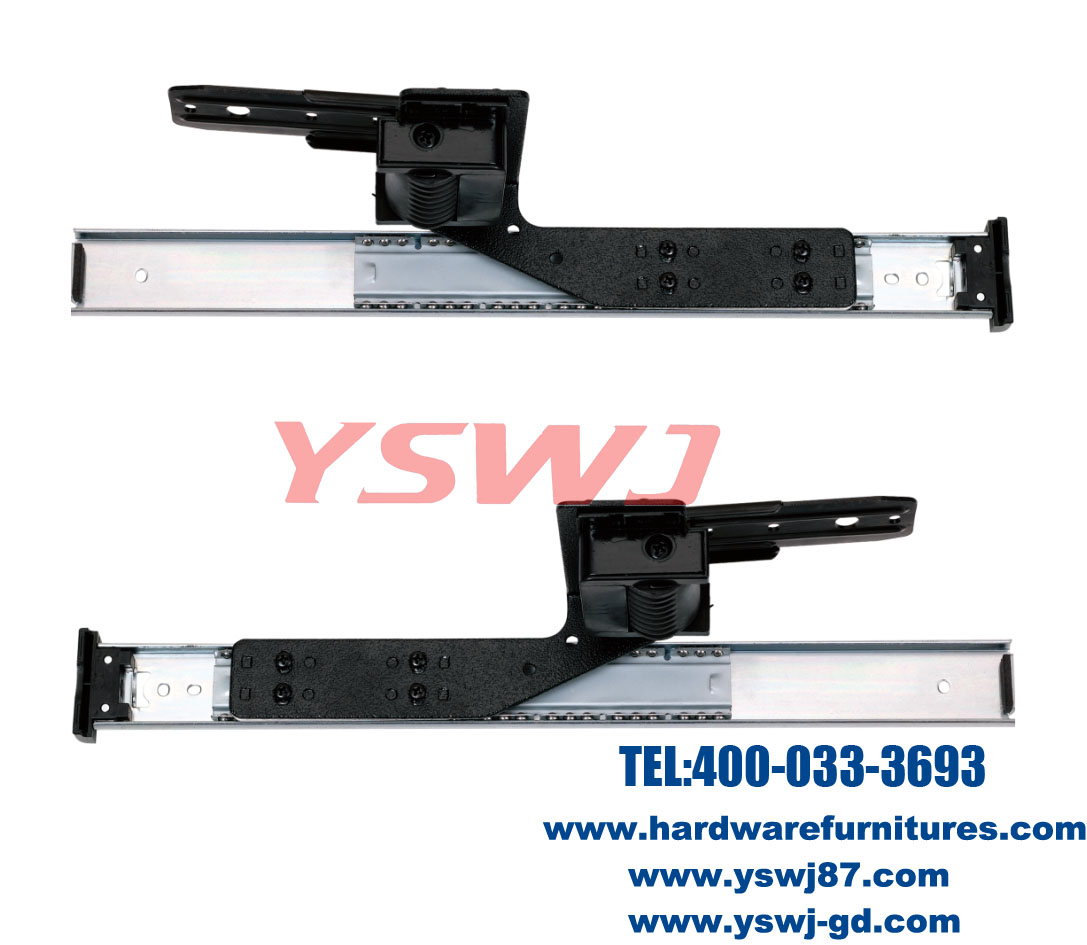

Soft closing mechanism YS336B

Product category: Cabinet lift system
Hotline: 400-0333-693
Model: YS336B
Fax: +86-757-82629360
A、sliding in and save the space, soft closing
B、Adjustment is achieved by turning the screw to choose the closing speed
C、Application: for all upward opening kitchen cabinet

cabinet door mechanism


soft closing mechanism


Product Description:

A、Material:plastic POM、ABS、PA66、Zinc alloy、ZnAI4、cold-rolled steel Q235、resistance oil、spring steel 65Mn

B、Finish:black plastic,black electrophoretic, blue zinc-plated





Features:

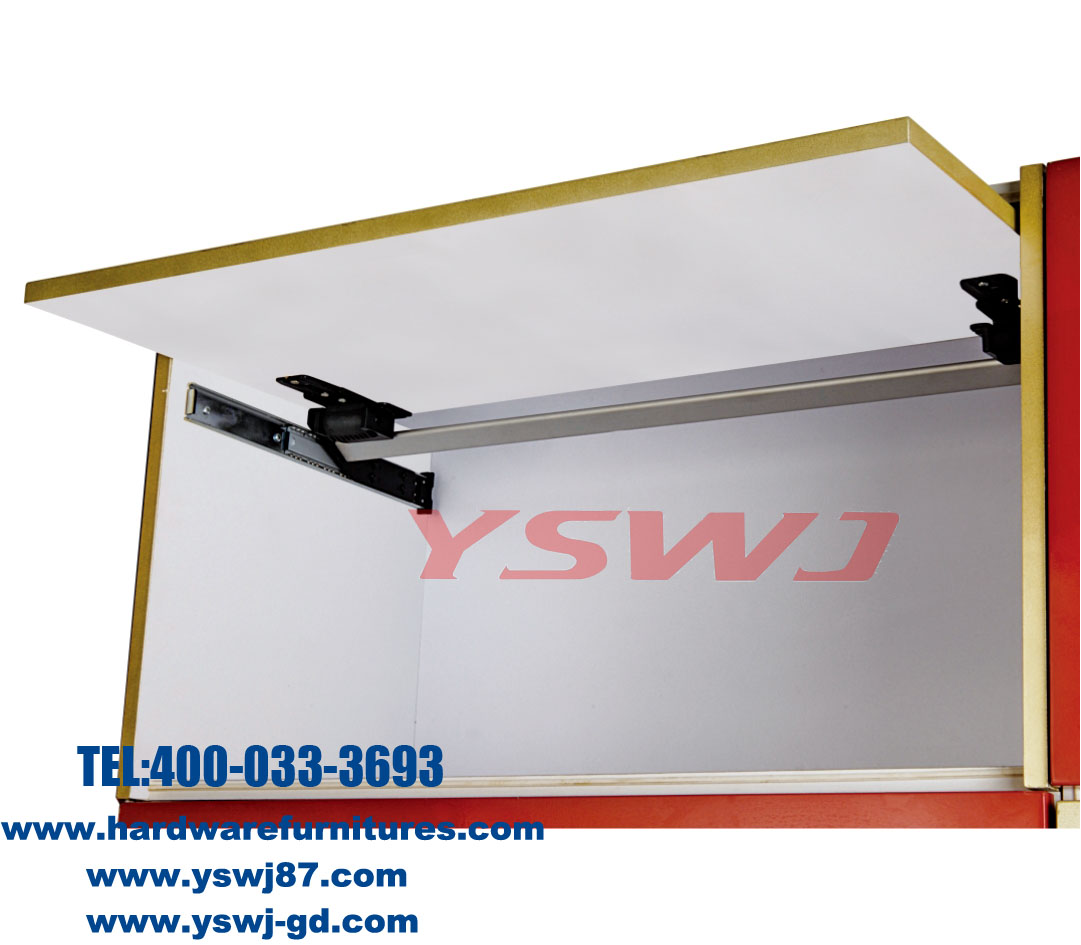

A、Upward opening to 90°, the door can keep stay still, sliding smoothly along the slide track by pushing

B、Soft closing without slam





Product Advantages:

A、sliding in and save the space, soft closing
B、Adjustment is achieved by turning the screw to choose the closing speed
C、Application: for all upward opening kitchen cabinet





Product Parameters:

A、application For all upward kitchen cabinet
B、slide size: 350mm,the length of connecting bar:851mm
C、Cycles: 50,000times





Others (Packing and services):

Package: 1set/inner box,6sets/box, N.W/G.W: 12.4kgs/12.85kgs
MEAS: 32cm * 31cm * 37cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )



Gas Strut   Tandem Box   Cabinet Support   flap Stay    Soft Lid Stay    Concealed Runner System
* Indicated required fieldInquire: Soft closing mechanism YS336B
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.
Soft closing slide mechanism YS336A
Soft closing slide mechanism YS336A
A、Upward opening to 90°, the door can keep stay still, sliding smoothly along the slide track by pushing
B、Better for space-saving
C、Soft closing without slam
D、Own Apperance Design Patent Certificate and Utility Model Patent Certificate.
Vertical Swing Lift Up Mechanism YS338
Vertical Swing Lift Up Mechanism YS338
A、easy to operate and save the space, a wide range of options for users.
B、Application for the upward opening door.
C、easy to assemble, the gap between door and cabinet is adjustable in 3-D
D、Own Appearance Design Patent Certificate
Folding door mechanism  YS339
Folding door mechanism YS339
A、Folding and lifting, saving the space
B、Adjustment for interior layer is achieved to meet the requirements of different height and size
C、Using with our product H3308 for a better function
D、Own Apperance Design Patent Certificate and Utility Model Patent Certificate.
Kitchen door lifting mechanism YS342
Kitchen door lifting mechanism YS342
A、opening angle 60°,application for top-of-rack
B、Unique mechanism design to lift the door, and hold tight at the closed position
C、Capacity: 8-10kgs, door height: over 600mm
D、Cycles: 50,000times
