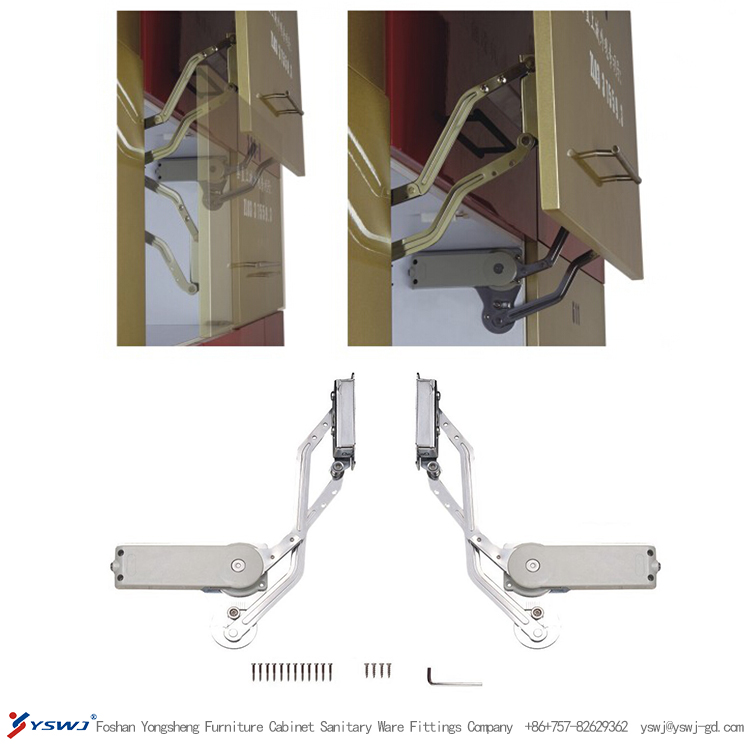

Vertical Swing Lift Up Mechanism YS338

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS338
Fax:
A、easy to operate and save the space, a wide range of options for users.
B、Application for the upward opening door.
C、easy to assemble, the gap between door and cabinet is adjustable in 3-D
D、Own Appearance Design Patent Certificate



Vertical Swing Lift Up Mechanism YS338



Product Description:

A、Material:plastic POM、ABS、Zinc alloy、 cold-rolled steel Q235、 resistance oil

B、Finish:plated(brass + nickel + sealing) , polish, heat treatment



Features:

A、Easy to operate and save the space, a wide range of options for users.
B、Application for the upward opening door.
C、Easy to assemble.

D、The gap between door and cabinet is adjustable in 3-D.



Product advantages:

A、The door lift up slowly by itself after pulling  for 10cm.
B、Closing silently without slam



Product parameters:

A、Application: For all upward kitchen cabinet.

B、Installation Conditions:
   a、capacity: 4-4.5kgs
   b、the rising height of door: 380mm
   c、the width for installation: 600-900mm
   d、the length of connecting bar: 551mm or 851mm
