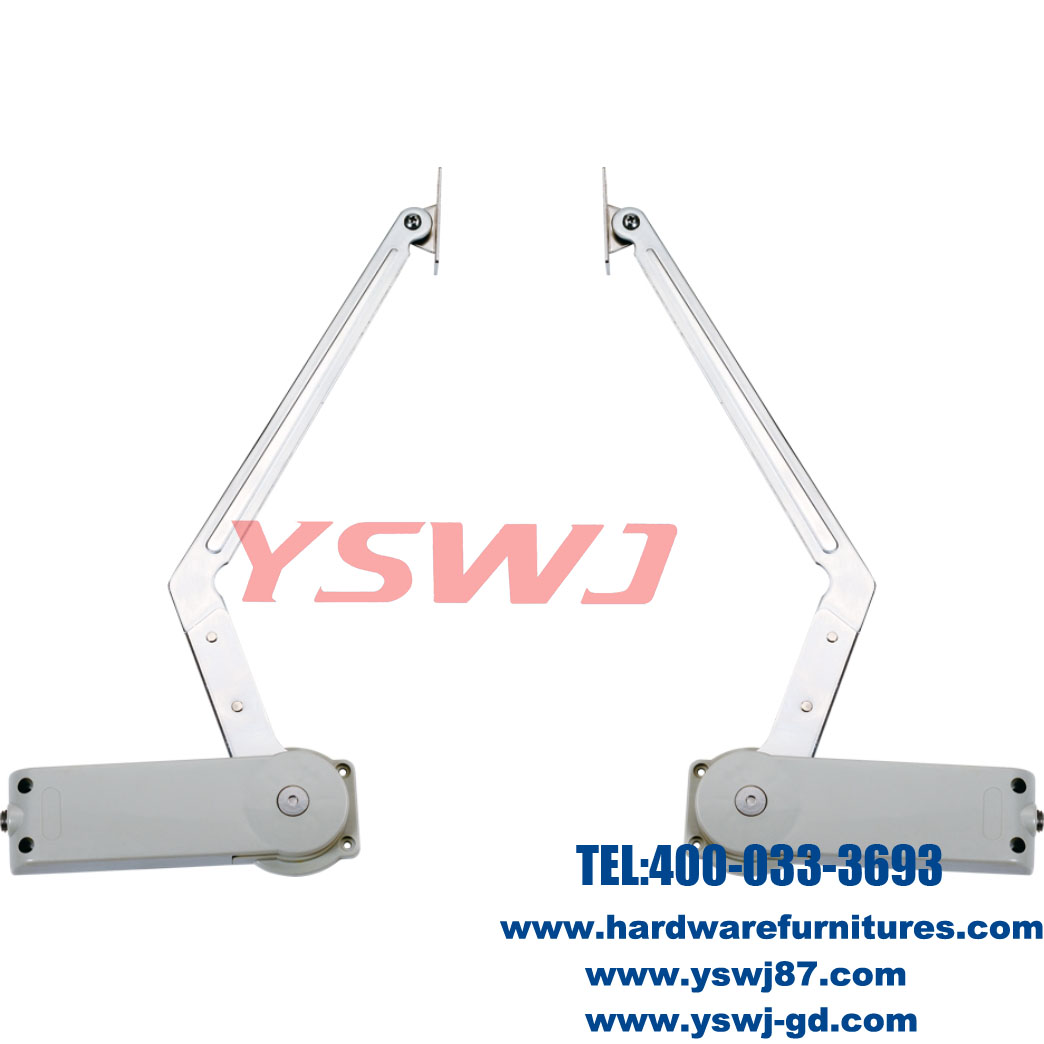

Folding door mechanism YS339

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS339
Fax:
A、Folding and lifting, saving the space
B、Adjustment for interior layer is achieved to meet the requirements of different height and size
C、Using with our product H3308 for a better function
D、Own Apperance Design Patent Certificate and Utility Model Patent Certificate.

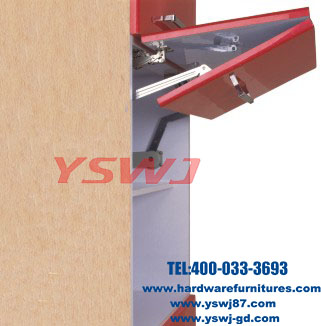

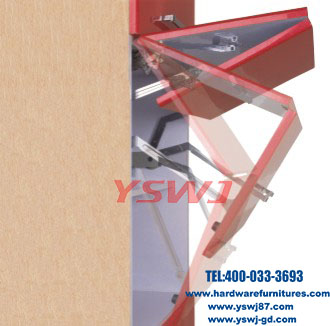

bi-fold lift system




 cabinet door stay






double door support      folding door mechanism




 Apperance Design Patent and Utility Model Patent Certificate

cabinet stays




Product Description:

A、Material:plastic POM、ABS、Zinc alloy、 cold-rolled steel Q235、 resistance oil

B、Finish:plated(brass + nickel + sealing) , polish, heat treatment





Features:

A、Folding and lifting, saving the space
B、Adjustment for interior layer can be achieved to meet the requirements of different height and size
C、Using with folding hinge H3308 for a better function.

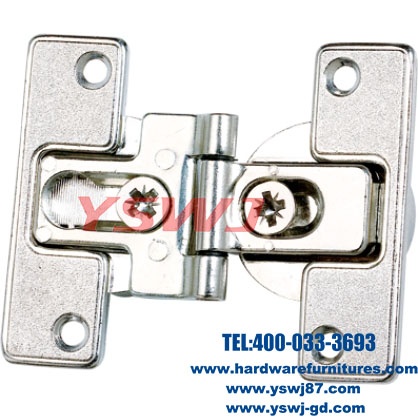

Folding Hinge  H3308







Product Advantages:

A、Accordion design for a better labor-saving effect.
B、Adjustment is achieved.
C、Application for double-layers cabinet





Product Parameters:

A、Application: For all two doors of the same height

B、Installation conditions:

  •     Width 600-900mm
  •     The height of one door: 340-360mm
  •     The capacity for one door: 3.5kgs

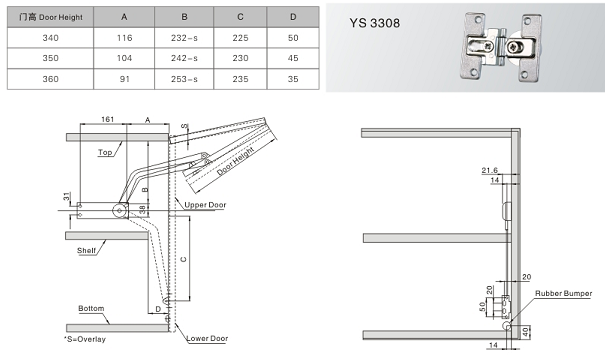

C、Pls refer to the illustration below.





Others (Packing and services):

Package: 1set/inner box,10sets/box,N.W/G.W: 15kgs/16.7kgs
MEAS: 49.2cm * 39.2cm * 17.8cm,
Delivery Date: Normally in one month
Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )
