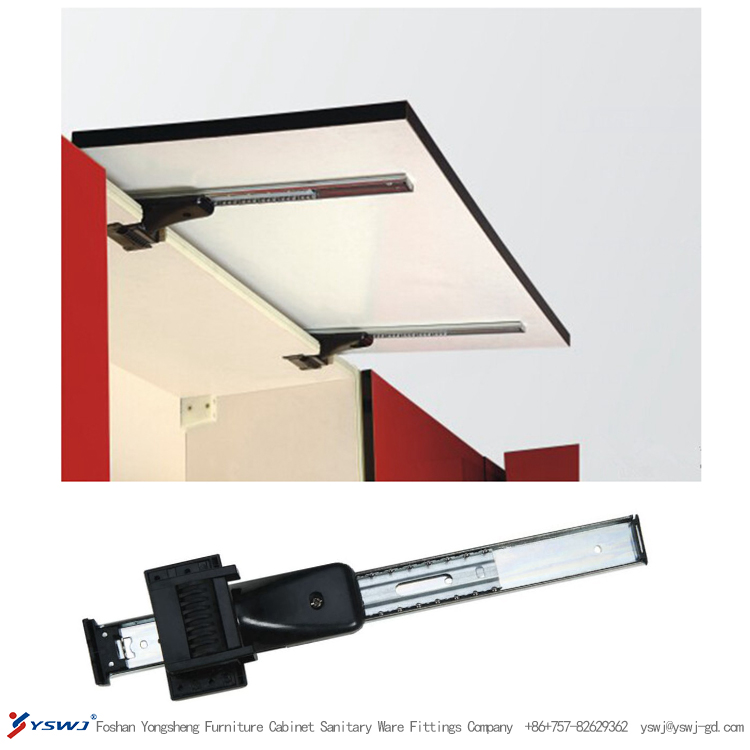

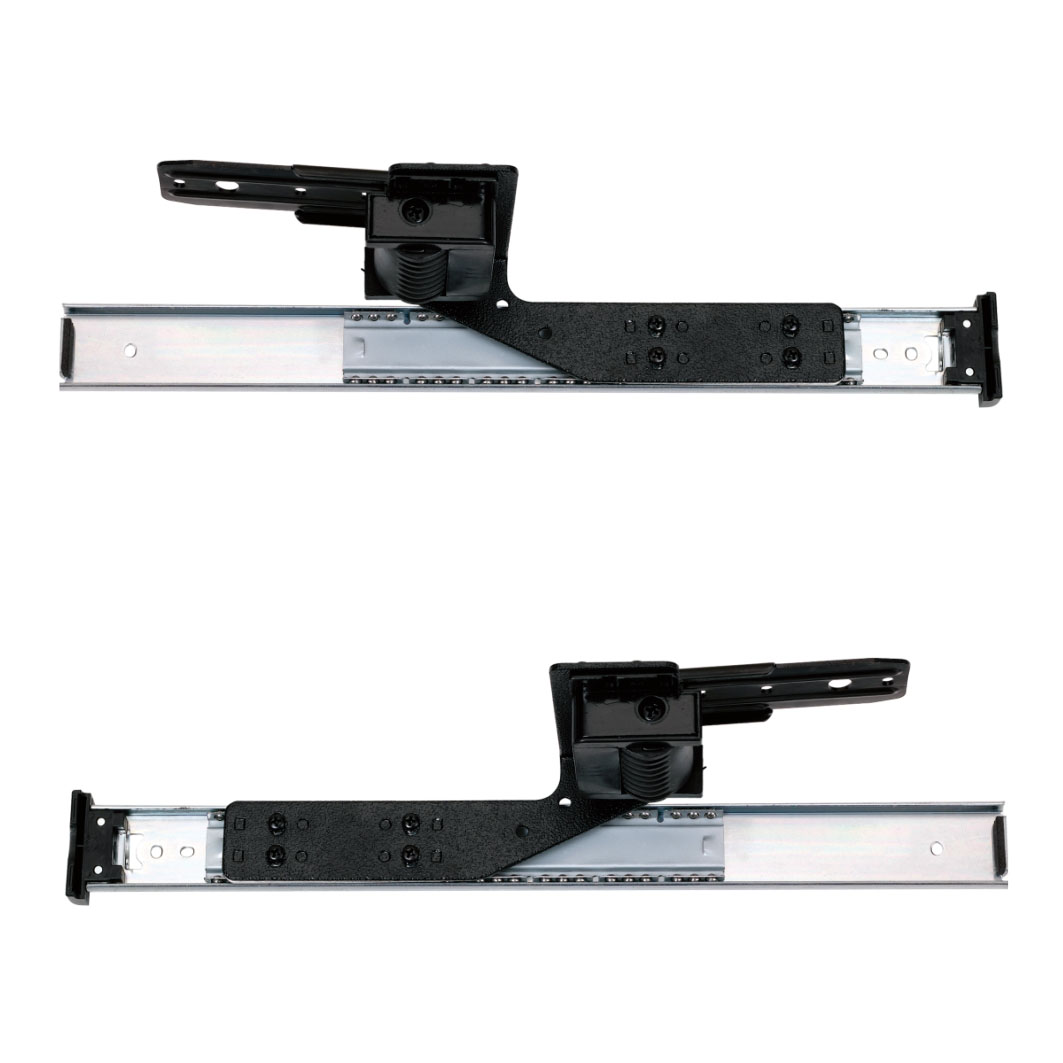

Upturning soft closing slide mechanism YS336A

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS336-A
Fax:
A、Upward opening to 90°, the door can keep stay still, sliding smoothly along the slide track by pushing

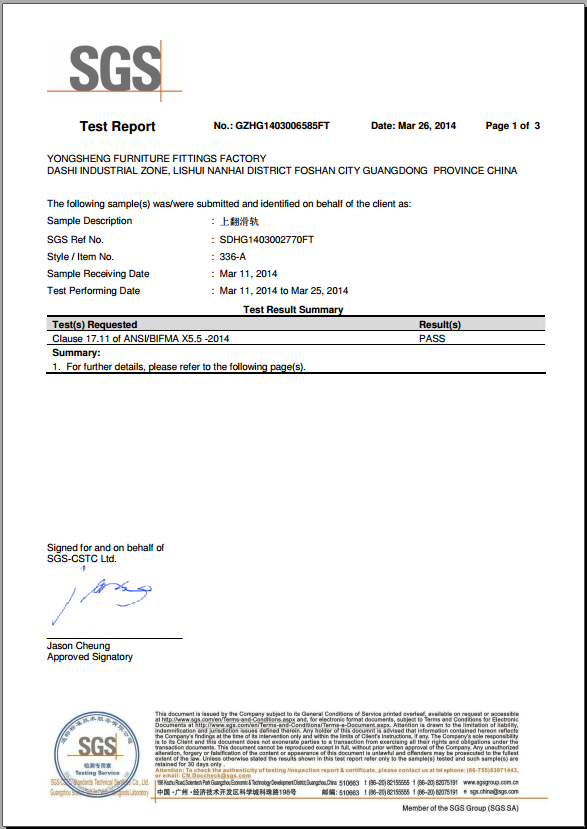

B、cycles: pass SGS certification of 30000 cycles.
C、Soft closing without slam

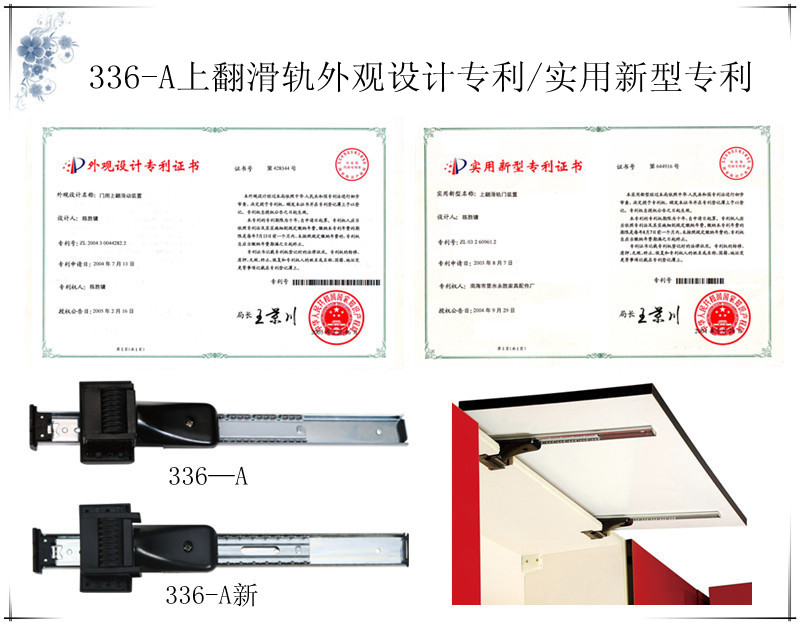

D、Own Apperance Design Patent Certificate and Utility Model Patent Certificate.

 Upturning soft closing slide mechanism YS336A




Product Description:

A、Material:plastic POM、ABS、PA66、Zinc alloy、ZnAI4、 cold-rolled steel Q235、 resistance oil、spring steel 65Mn

B、Finish:black plastic,black electrophoretic, blue zinc-plated



Features:

A、Upward opening to 90°, the door can keep stay still, sliding smoothly along the slide track by pushing

B、Better for space-saving

C、Soft closing without slam

D、Compare with YS336-B cabinet inside smooth slide which conceals inside the cabinet



Product Advantages:

A、space-saving, soft closing.

B、Adjustment is achieved by turning the screw to choose the closing speed.

C、Application: for filling cabinet, top tank.

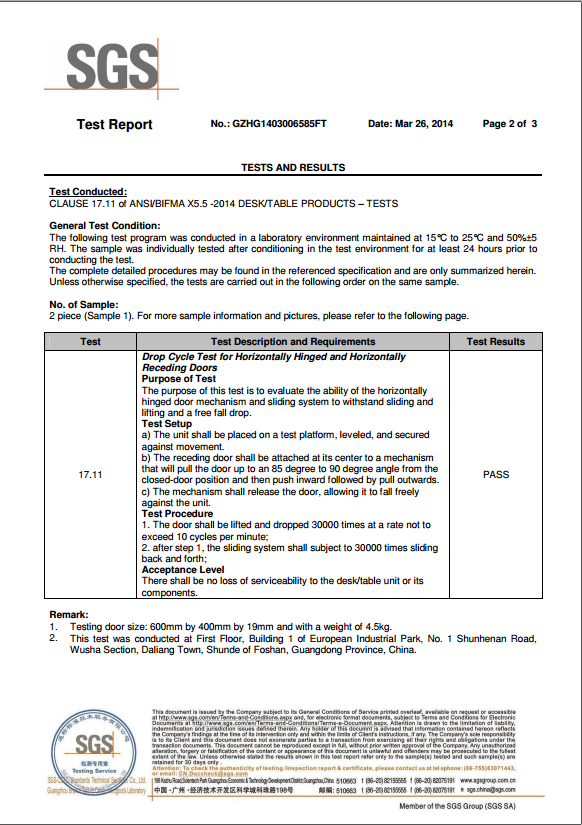

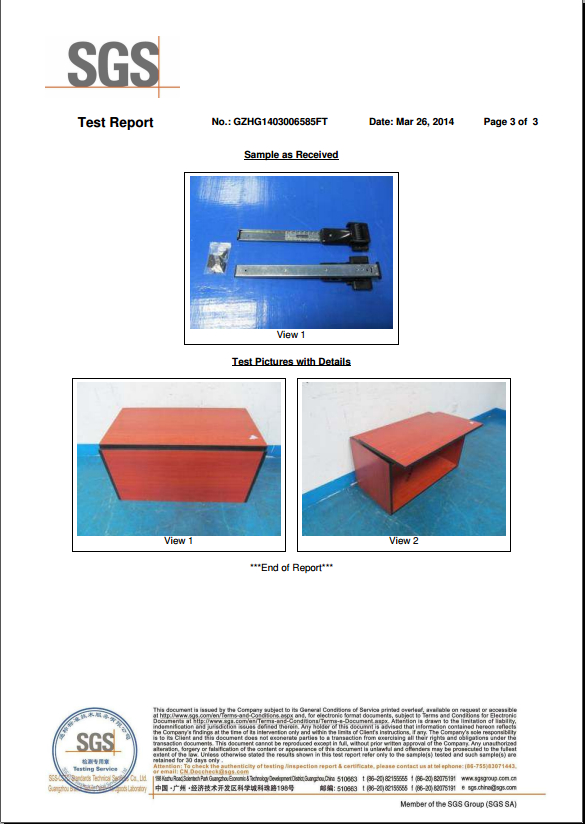

D、Cycles: pass SGS certification of 30000 cycles.









Product Parameters:

A、Door height 360-450mm

B、Type: light duty 3-5kgs, heavy duty 5-7kgs

C、Length of slide: 350mm

D、Cycles: 30,000times

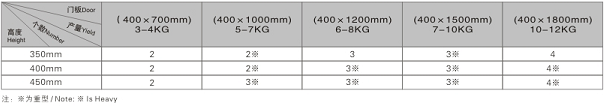

E、Please refer to the illustration below



 Other Cabinet support



Cabinet support
* Indicated required fieldInquire: Upturning soft closing slide mechanism YS336A
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.
Vertical Swing Lift Up Mechanism YS338
Vertical Swing Lift Up Mechanism YS338
A、easy to operate and save the space, a wide range of options for users.
B、Application for the upward opening door.
C、easy to assemble, the gap between door and cabinet is adjustable in 3-D
D、Own Appearance Design Patent Certificate
Folding door mechanism  YS339
Folding door mechanism YS339
A、Folding and lifting, saving the space
B、Adjustment for interior layer is achieved to meet the requirements of different height and size
C、Using with our product H3308 for a better function
D、Own Apperance Design Patent Certificate and Utility Model Patent Certificate.
Kitchen door lifting mechanism YS342
Kitchen door lifting mechanism YS342
A、opening angle 60°,application for top-of-rack
B、Unique mechanism design to lift the door, and hold tight at the closed position
C、Capacity: 8-10kgs, door height: over 600mm
D、Cycles: 50,000times
Upturning soft closing mechanism YS336B
Upturning soft closing mechanism YS336B
A、sliding in and save the space, soft closing
B、Adjustment is achieved by turning the screw to choose the closing speed
C、Application: for all upward opening kitchen cabinet
