Yongsheng Furniture Fittings Co.,Ltd

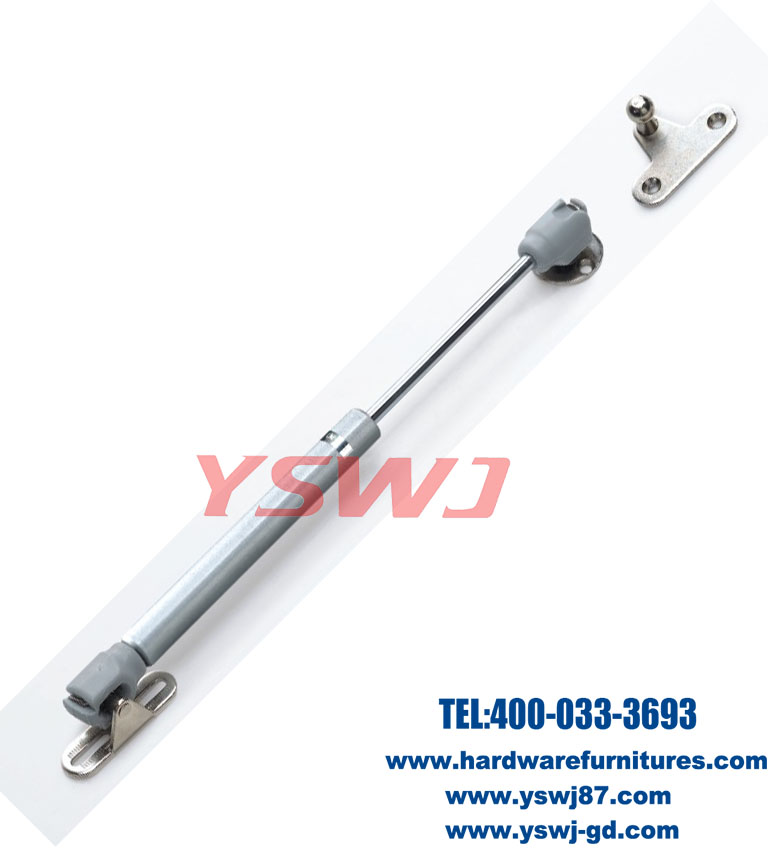

Gas strut YS612 C grade

Product category: Cabinet support
Hotline: 86-757-82629362
Model: YS612 C grade
Fax:
A、Pass endurance test over 50,000times, attenuation less than 10% after 50,000cycles
B、Finish: metallic paint, NSS 8grade/24h
C、aluminum frame and glass door is achieved





soft stop gas spring


 soft stop gas spring




Product Description



A、cylinder: seamless steel pipe20#, Φ 15*1mm



B、piston rod: steel 45#, Φ 6mm



C、piston: brassH62,



D、sealing parts: O-ring fluoro rubber,



E、end fittings: PA66,



F、gas: nitrogen,



G、aircraft hydraulic oil ( still work well below 58°)

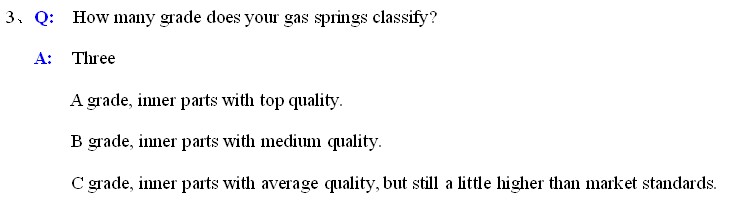

Difference among A Grade, B Grade  and C Grade

A、They look the same.

B、

Grade Inner parts Cycles Opening Way
A Brass > 100,000 times Two Way
B Aluminum Alloy > 80,000 times Two Way
C Plastic > 50,000 times One Way



Features

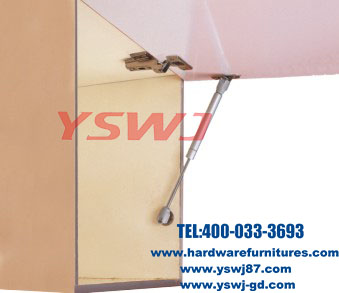

A、One way,  up-opening to 50°,the door lift up by itself.

Bdown-closing to 50°,the door full close by itself





Product Advantages



APass endurance test over 50,000times, attenuation less than 10% after 50,000cycles

BFinish: metallic paint, NSS 8grade/24h

Caluminum frame and glass door is achieved



Product Parameter



AApplication: for all up-opening door, still work well between -50°~ 80°

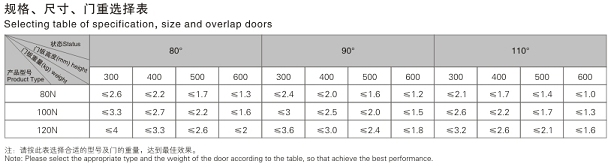

BInstallation conditions: Pls refer to the attached table below



   adifferent choice according to the door weight and door height.

   bover 600cm * 400cm, paired using is the best.









OthersPacking and Services

Package:10pcs/inner box, 10 boxes/ctn

N.W/G.W: 15.5kgs/16.15kgs

MEAS: 34.5cm * 33.2cm * 29.5cm,

Delivery Date: Normally in one month



Samples Preparation: samples can be sent in 3 working days (DHL 3-5daysUPS3-5daysFedex/TNT 3-5daysEMS 7days reach destination )
