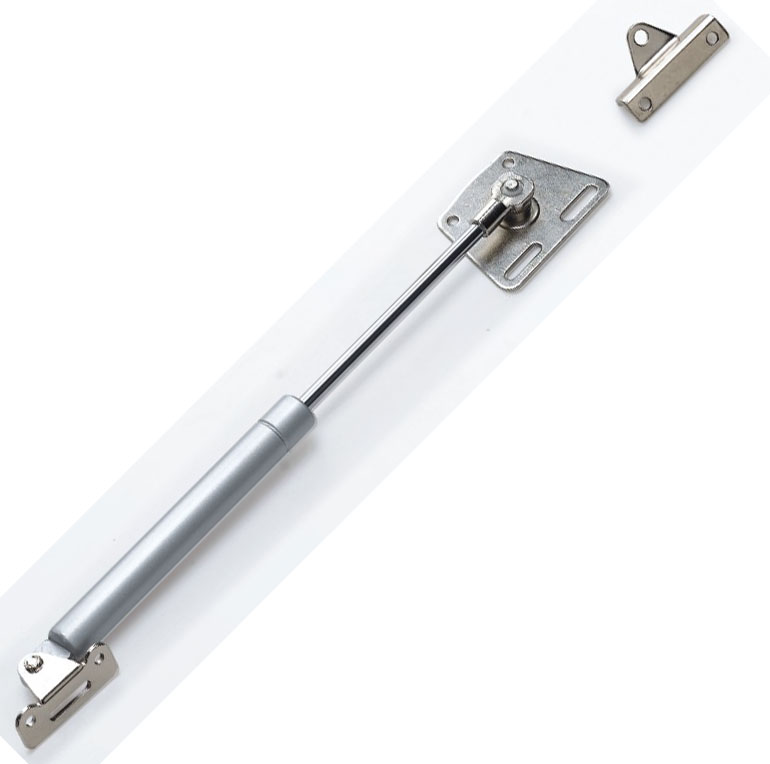

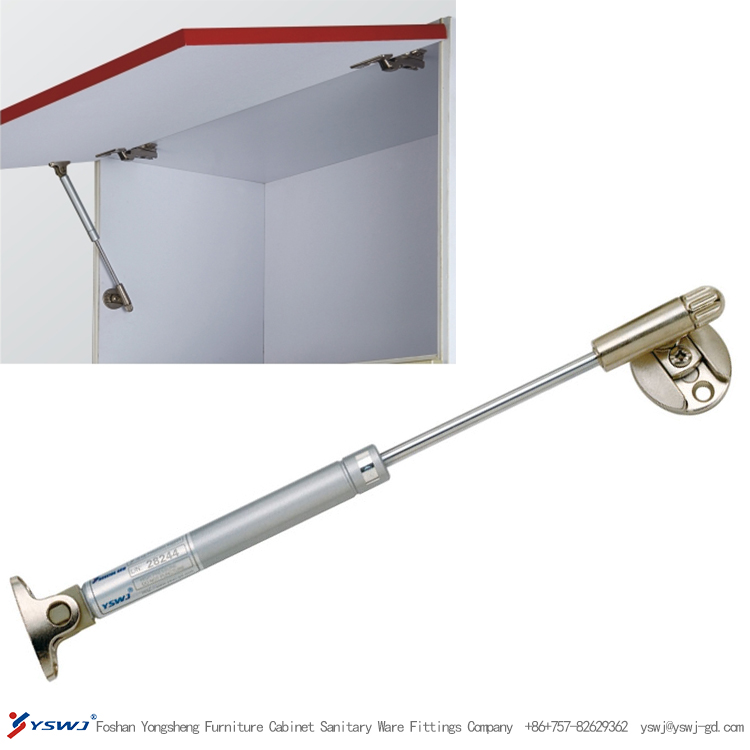

Soft up gas spring strut YS616-A

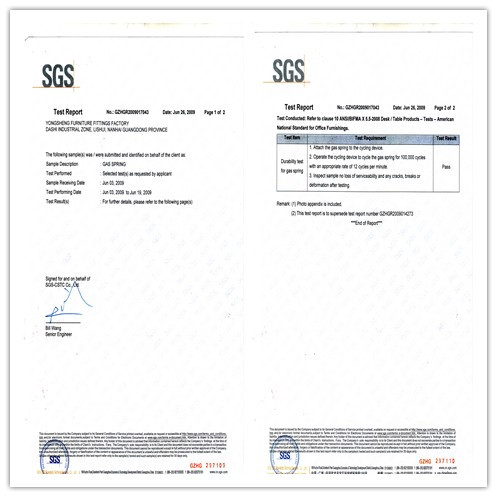

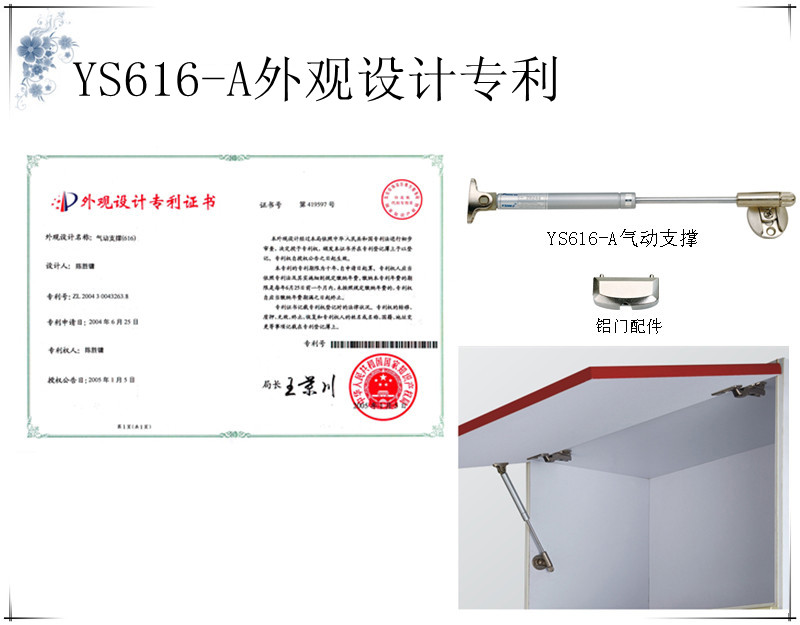

SGS Certificate







Product Description:

A、cylinder: seamless steel pipe20#, Φ 15*1mm

B、piston rod: steel 45#, Φ 6mm

C、piston: brassH62,

D、sealing parts: O-ring fluoro rubber,

E、end fittings: PA66,

F、gas: nitrogen,

G、aircraft hydraulic oil ( still work well below 58°)





The joint of Soft up gas spring strut YS611,YS612 and YS613 is settled without adjusting;

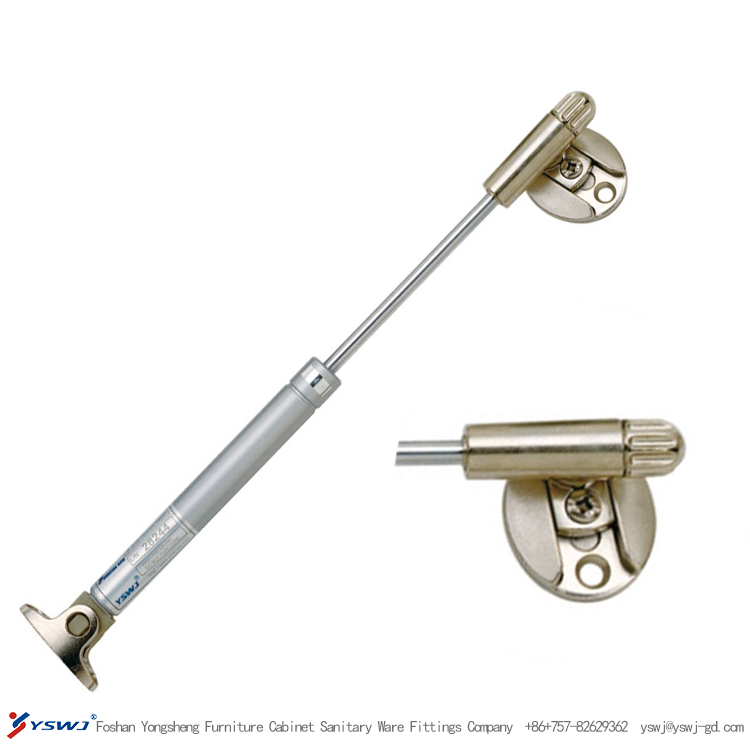

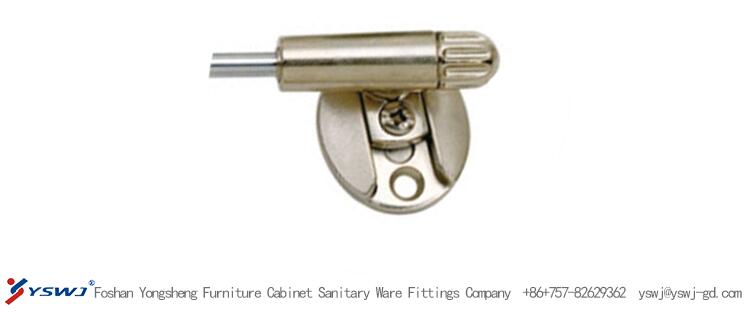

The joint of Soft up gas spring strut YS616-A can adjust for 5MM up/down:



Features:

A、upward opening, two stay

    stay 1:  up-opening to 30°,the door lift up gently by itself.
    stay 2:  the door slow down to completely opening when the angle ups to 80°。

B、closing: down-closing to 50°,the door full close by itself



Product Advantages:

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
C、aluminum frame and glass door is achieved



Product Parameters:

A、Application: for all up-opening door, still work well between -50°~ 80°

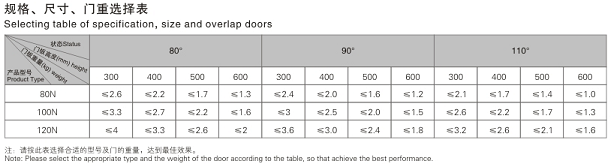

B、Installation conditions:

   a、different choice according to the door weight and door height
   b、over 600cm * 400cm, paired using is the best


 Other gas spring strut

Soft up gas spring strut
* Indicated required fieldInquire: Soft up gas spring strut YS616-A
* First Name: Please fill in your First Name
* Last Name: Please fill in your Last Name
Company name: Please fill in your company name
Telephone number:
Mobile phone number: Please fill in your telephone number
* E-mail:
Country:
Address:
* Inquire intention description:
Please fill in the quantity and description of Inquire products for uniform stocking.

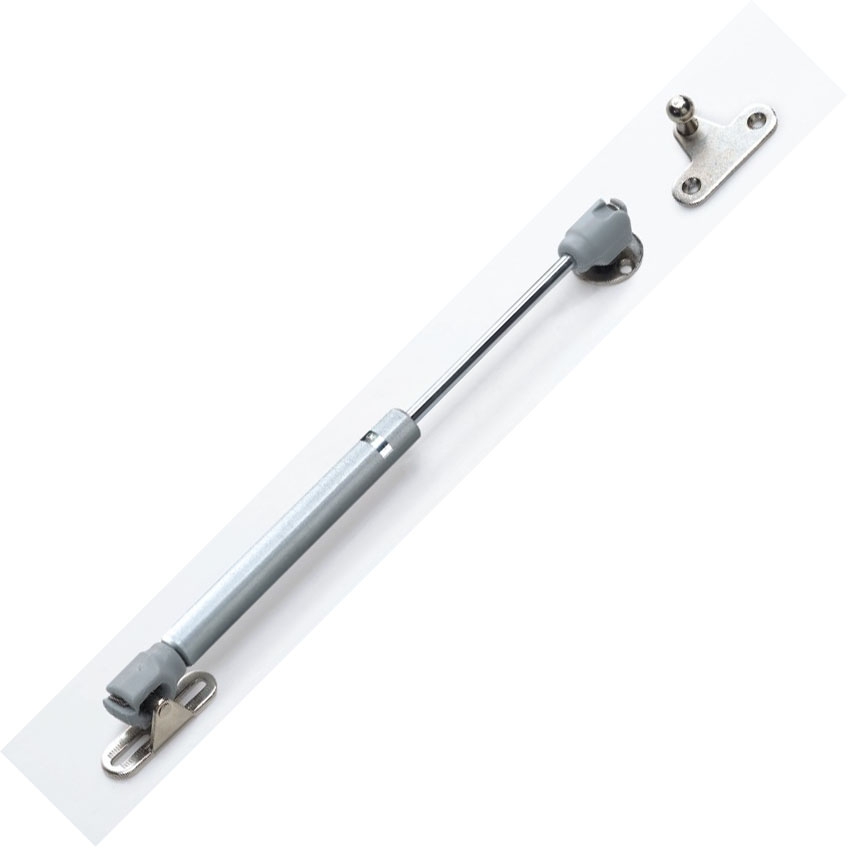

Gas strut YS611B
Gas strut YS611B
A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h

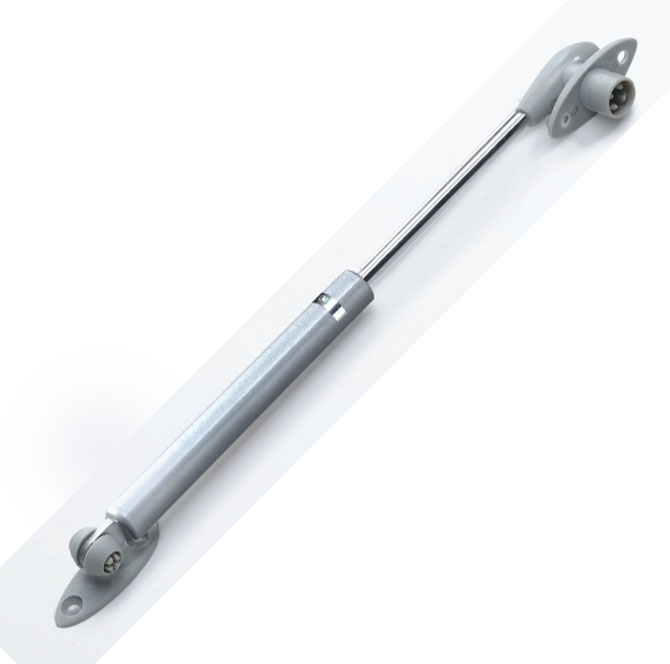

Gas strut YS613
Gas strut YS613
A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
C、aluminum frame and glass door is achieved

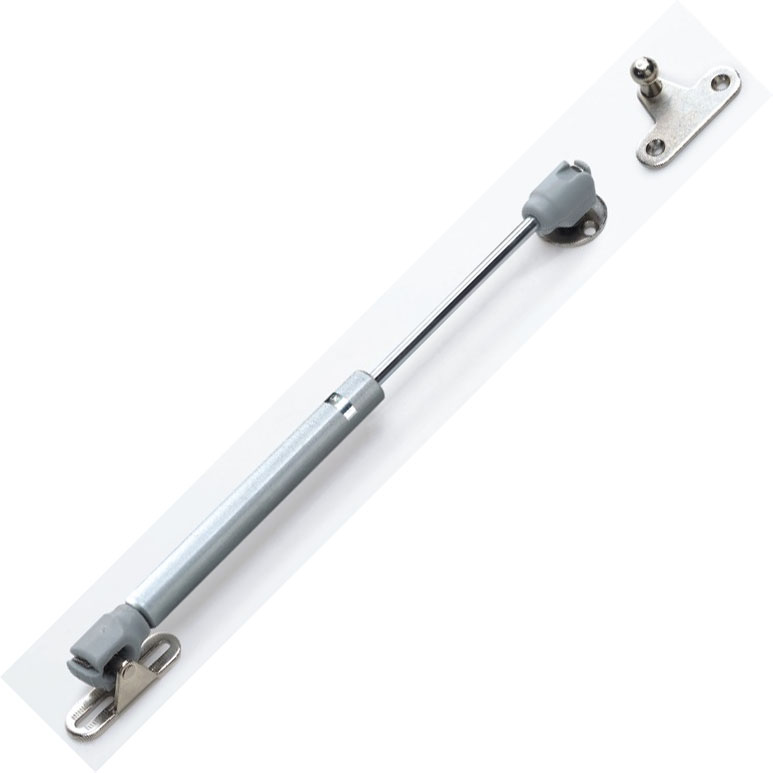

Gas strut YS612 B grade
Gas strut YS612 B grade
A、Pass endurance test over 80,000times, attenuation less than 10% after 80,000cycles
B、Finish: metallic paint, scratch resistance, NSS 8grade/48h
C、aluminum frame and glass door is achieved
Gas strut YS612 C grade
Gas strut YS612 C grade
A、Pass endurance test over 50,000times, attenuation less than 10% after 50,000cycles
B、Finish: metallic paint, NSS 8grade/24h
C、aluminum frame and glass door is achieved
